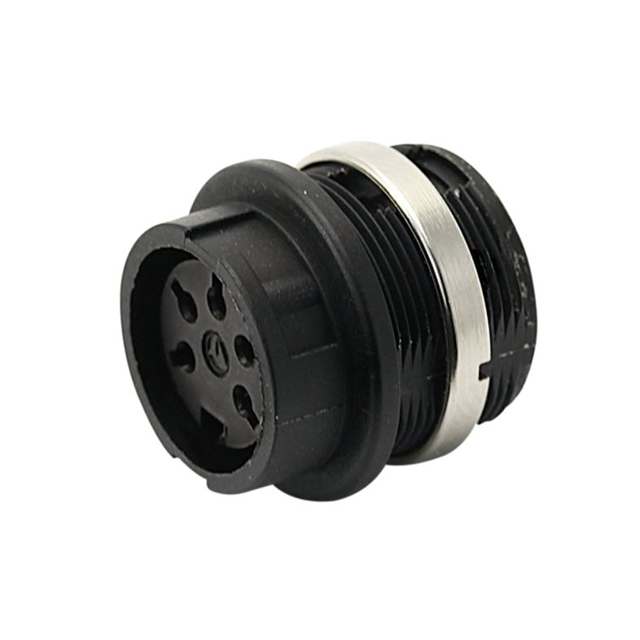

T 3327 050

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	T 3327 050

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-4
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish - Mating	Voltage Rating	Number of Positions	Fastening Type	Current Rating (Amps)	Shell Size - Insert	Primary Material	Connector Type	Note	Material Flammability Rating	Housing Color	Type	Contact Type	Contact Size	Insert Material	Contact Shape	Mounting Feature	Shielding	Color	Shell Finish	Mounting Type
Amphenol Tuchel Industrial T 3327 018	Plastic	IP40	100 °C	-40 °C	Keyed	Gold	250 VDC	4	Bayonet Lock	10 A	M16-4	Plastic	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3327 050	Plastic	IP40	100 °C	-40 °C	Keyed			4	Bayonet Lock		M16-4		Receptacle Housing	Contacts Not Included	UL94 V-0	Black	For Female Sockets	Crimp	1.5 mm	Thermoplastic	Circular	Bulkhead - Rear Side Nut	Unshielded
Amphenol Tuchel Industrial T 3327 000	Plastic	IP40	100 °C	-40 °C	Keyed	Silver	250 VDC	4	Bayonet Lock	10 A	M16-4	Plastic	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3327 100	Die Cast	IP40	100 °C	-40 °C	Keyed	Silver	250 VDC	4	Bayonet Lock	10 A	M16-4	Metal	Receptacle Female Sockets											Silver	Nickel
Amphenol Tuchel Industrial T 3327 500	Plastic	IP40	100 °C	-40 °C	Keyed	Silver	250 VDC	4	Bayonet Lock	10 A	M16-4	Plastic	Receptacle Female Sockets													Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.82

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
