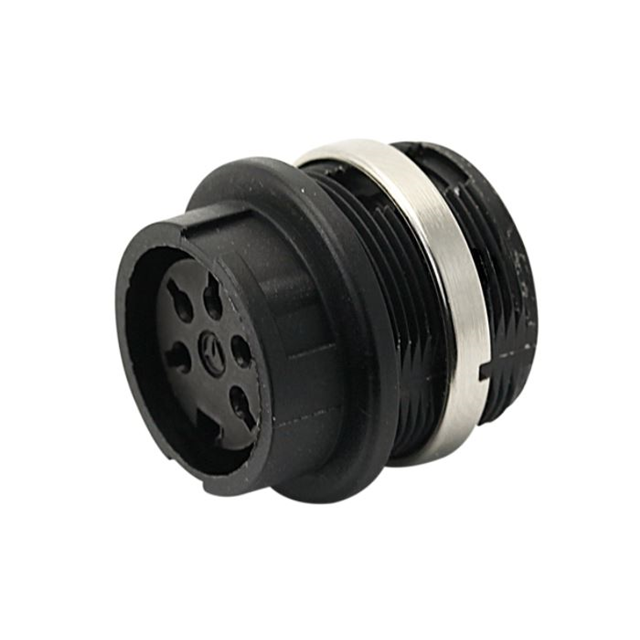

T 3327 018

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish - Mating	Voltage Rating	Number of Positions	Fastening Type	Current Rating (Amps)	Shell Size - Insert	Primary Material	Connector Type	Note	Material Flammability Rating	Housing Color	Type	Contact Type	Contact Size	Insert Material	Contact Shape	Mounting Feature	Shielding	Color	Shell Finish	Mounting Type
Amphenol Tuchel Industrial T 3327 018	Plastic	IP40	100 °C	-40 °C	Keyed	Gold	250 VDC	4	Bayonet Lock	10 A	M16-4	Plastic	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3327 050	Plastic	IP40	100 °C	-40 °C	Keyed			4	Bayonet Lock		M16-4		Receptacle Housing	Contacts Not Included	UL94 V-0	Black	For Female Sockets	Crimp	1.5 mm	Thermoplastic	Circular	Bulkhead - Rear Side Nut	Unshielded
Amphenol Tuchel Industrial T 3327 000	Plastic	IP40	100 °C	-40 °C	Keyed	Silver	250 VDC	4	Bayonet Lock	10 A	M16-4	Plastic	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3327 100	Die Cast	IP40	100 °C	-40 °C	Keyed	Silver	250 VDC	4	Bayonet Lock	10 A	M16-4	Metal	Receptacle Female Sockets											Silver	Nickel
Amphenol Tuchel Industrial T 3327 500	Plastic	IP40	100 °C	-40 °C	Keyed	Silver	250 VDC	4	Bayonet Lock	10 A	M16-4	Plastic	Receptacle Female Sockets													Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 8.58

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
