RER13341142TDMP

Active

ebm-papst Inc.

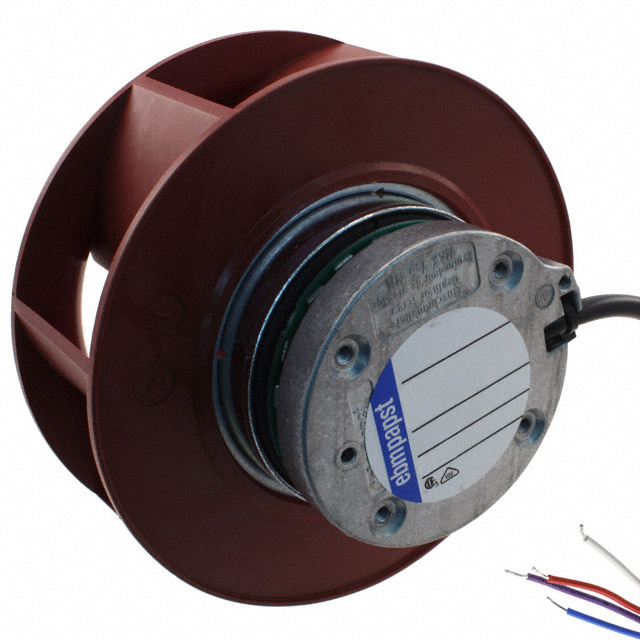

FAN IMP MTRZD 133X91MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 133X91MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER13341142TDMP

Air Flow	270.6 CFM
Air Flow	7.58 m³/min
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	145000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	50 W
RPM	5000 RPM
Size / Dimension [diameter]	133 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	16 VDC
Weight	907.2 g
Weight	2 lbs
Width [y]	91 mm

Part	Width [y]	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Size / Dimension [diameter]	Air Flow	Air Flow	Termination	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Voltage - Rated [custom]	Weight	Weight	Fan Type	Power (Watts)	Material - Blade	Voltage - Rated
ebm-papst Inc. RER133-41/18/2TDP	91 mm	6000 RPM	-20 °C	-20 C	65 °C	65 °C	PWM Control Speed Sensor (Tach)	133 mm	9.31 mł/min	332.4 CFM	4 Wire Leads	Ball	72 VDC	36 VDC	140000 Hrs	48 VDC	907.2 g	2 lbs	Motorized Impellers	87 W	Plastic Fiberglass Reinforced
ebm-papst Inc. RER13341142TDMP	91 mm	5000 RPM	-20 °C	-20 C	65 °C	65 °C	PWM Control Speed Sensor (Tach)	133 mm	7.58 m³/min	270.6 CFM	4 Wire Leads	Ball	30 V	16 VDC	145000 Hrs		907.2 g	2 lbs	Motorized Impellers	50 W	Plastic Fiberglass Reinforced	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 130.72

General part information

Fan Motorized Impellers 24VDC Round - 133mm Dia Ball 270.6 CFM (7.58mł/min) 4 Wire Leads
