RER133-41/18/2TDP

Active

ebm-papst Inc.

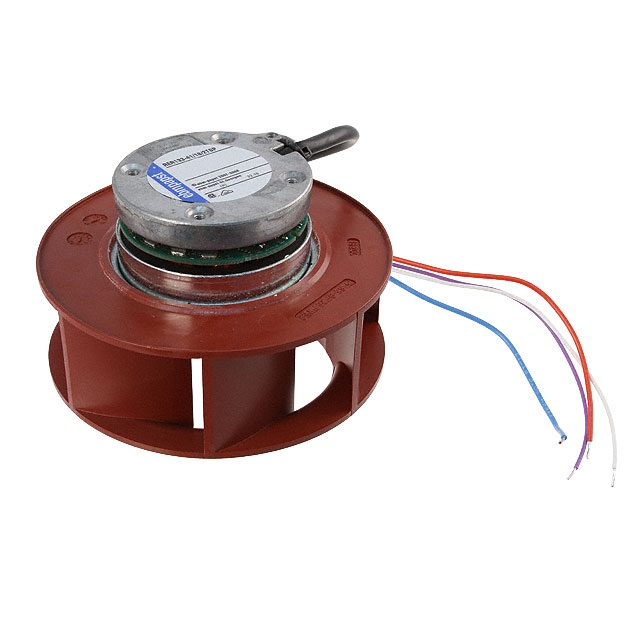

FAN IMP MTRZD 133X91MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 133X91MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER133-41/18/2TDP

Air Flow	9.31 mł/min
Air Flow	332.4 CFM
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	140000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	87 W
RPM	6000 RPM
Size / Dimension [diameter]	133 mm
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	907.2 g
Weight	2 lbs
Width [y]	91 mm

Part	Width [y]	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Size / Dimension [diameter]	Air Flow	Air Flow	Termination	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Voltage - Rated [custom]	Weight	Weight	Fan Type	Power (Watts)	Material - Blade	Voltage - Rated
ebm-papst Inc. RER133-41/18/2TDP	91 mm	6000 RPM	-20 °C	-20 C	65 °C	65 °C	PWM Control Speed Sensor (Tach)	133 mm	9.31 mł/min	332.4 CFM	4 Wire Leads	Ball	72 VDC	36 VDC	140000 Hrs	48 VDC	907.2 g	2 lbs	Motorized Impellers	87 W	Plastic Fiberglass Reinforced
ebm-papst Inc. RER13341142TDMP	91 mm	5000 RPM	-20 °C	-20 C	65 °C	65 °C	PWM Control Speed Sensor (Tach)	133 mm	7.58 m³/min	270.6 CFM	4 Wire Leads	Ball	30 V	16 VDC	145000 Hrs		907.2 g	2 lbs	Motorized Impellers	50 W	Plastic Fiberglass Reinforced	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 48VDC Round - 133mm Dia Ball 332.4 CFM (9.31mł/min) 4 Wire Leads
