145101-01-48.00

Active

Amphenol RF

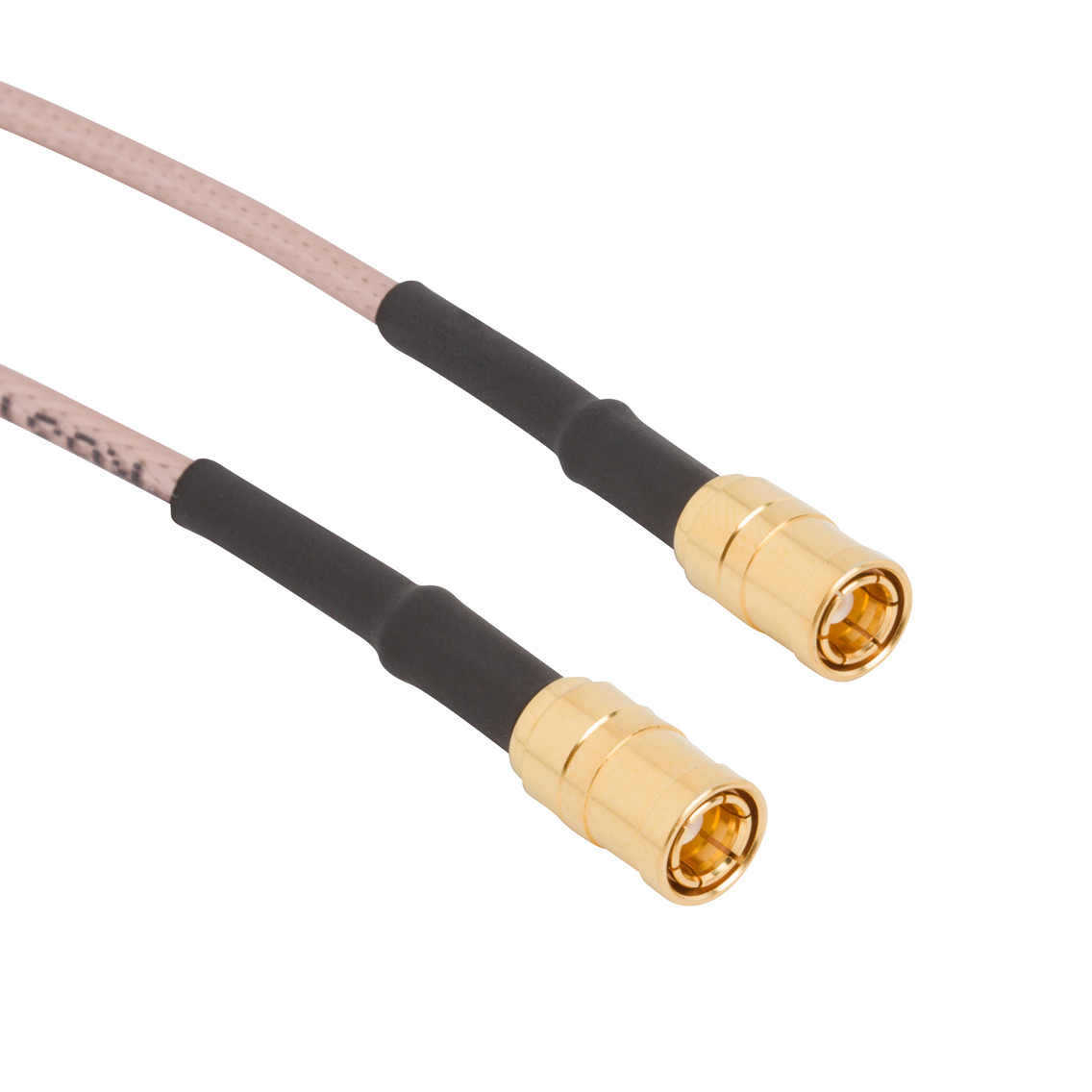

SMB STRAIGHT PLUG TO SMB STRAIGHT PLUG RG-316 50 OHM 48 INCHES (1219 MM)

Search across all available documentation for this part.

Active

Amphenol RF

SMB STRAIGHT PLUG TO SMB STRAIGHT PLUG RG-316 50 OHM 48 INCHES (1219 MM)

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	Style	1st Contact Gender	1st Connector	Features	Color	Cable Impedance	1st Connector Mounting Type	Length	Length	2nd Contact Gender	Overall Impedance	Cable Type	2nd Connector Mounting Type	Connector Impedance	Length
Amphenol RF 145101-01-24.00	SMB Plug	SMB to SMB	Female	SMB Plug	Shielded	Copper	50 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	Female	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol RF 145101-05-06.00	SMB Mini Plug	SMB Mini to SMB Mini	Female	SMB Mini Plug	Shielded	Copper	75 Ohms	Free Hanging (In-Line)	6 in	152.4 mm	Female	75 Ohms	RG-179	Free Hanging (In-Line)	75 Ohms
Amphenol RF 145101-05-24.00	SMB Mini Plug	SMB Mini to SMB Mini	Female	SMB Mini Plug	Shielded	Copper	75 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	Female	75 Ohms	RG-179	Free Hanging (In-Line)	75 Ohms
Amphenol RF 145101-01-36.00	SMB Plug	SMB to SMB	Female	SMB Plug	Shielded	Copper	50 Ohms	Free Hanging (In-Line)	36 in	91.44 cm	Female	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol RF 145101-01-M0.75	SMB Plug	SMB to SMB	Female	SMB Plug	Shielded	Copper	50 Ohms	Free Hanging (In-Line)	29.53 "	750 mm	Female	50 Ohms	RG-316	Free Hanging (In-Line)
Amphenol RF 145101-01-48.00	SMB Plug	SMB to SMB	Female	SMB Plug	Shielded	Copper	50 Ohms	Free Hanging (In-Line)	48 in	1200 mm	Female	50 Ohms	RG-316	Free Hanging (In-Line)		4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMB to SMB RG-316 48.0" (1.2m) 4.0'

Technical documentation and resources

No documents available
