145101-01-M0.75
ActiveAmphenol RF

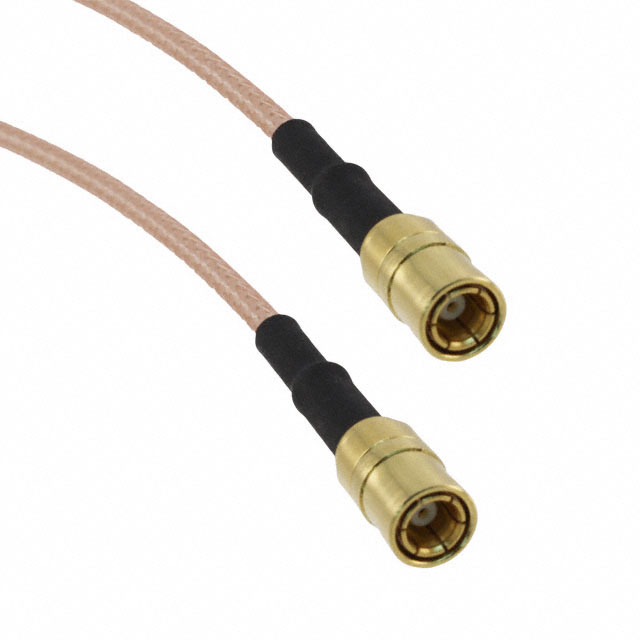

CBL ASSY SMB PLUG TO PLUG 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
145101-01-M0.75
ActiveAmphenol RF
CBL ASSY SMB PLUG TO PLUG 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 145101-01-M0.75 |
|---|---|
| 1st Connector | SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMB Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | SMB to SMB |
145101 Series
| Part | 2nd Connector | Style | 1st Contact Gender | 1st Connector | Features | Color | Cable Impedance | 1st Connector Mounting Type | Length | Length | 2nd Contact Gender | Overall Impedance | Cable Type | 2nd Connector Mounting Type | Connector Impedance | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | SMB Plug | SMB to SMB | Female | SMB Plug | Shielded | Copper | 50 Ohms | Free Hanging (In-Line) | 24 " | 609.6 mm | Female | 50 Ohms | RG-316 | Free Hanging (In-Line) | ||
Amphenol RF | SMB Mini Plug | SMB Mini to SMB Mini | Female | SMB Mini Plug | Shielded | Copper | 75 Ohms | Free Hanging (In-Line) | 6 in | 152.4 mm | Female | 75 Ohms | RG-179 | Free Hanging (In-Line) | 75 Ohms | |
Amphenol RF | SMB Mini Plug | SMB Mini to SMB Mini | Female | SMB Mini Plug | Shielded | Copper | 75 Ohms | Free Hanging (In-Line) | 24 " | 609.6 mm | Female | 75 Ohms | RG-179 | Free Hanging (In-Line) | 75 Ohms | |
Amphenol RF | SMB Plug | SMB to SMB | Female | SMB Plug | Shielded | Copper | 50 Ohms | Free Hanging (In-Line) | 36 in | 91.44 cm | Female | 50 Ohms | RG-316 | Free Hanging (In-Line) | ||
Amphenol RF | SMB Plug | SMB to SMB | Female | SMB Plug | Shielded | Copper | 50 Ohms | Free Hanging (In-Line) | 29.53 " | 750 mm | Female | 50 Ohms | RG-316 | Free Hanging (In-Line) | ||
Amphenol RF | SMB Plug | SMB to SMB | Female | SMB Plug | Shielded | Copper | 50 Ohms | Free Hanging (In-Line) | 48 in | 1200 mm | Female | 50 Ohms | RG-316 | Free Hanging (In-Line) | 4 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 28.76 | |
| 10 | $ 25.18 | |||
| 25 | $ 24.09 | |||
| 50 | $ 23.32 | |||
| 100 | $ 22.54 | |||
| 250 | $ 21.29 | |||
Description
General part information
145101 Series
Cable Assembly Coaxial SMB to SMB RG-316 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
