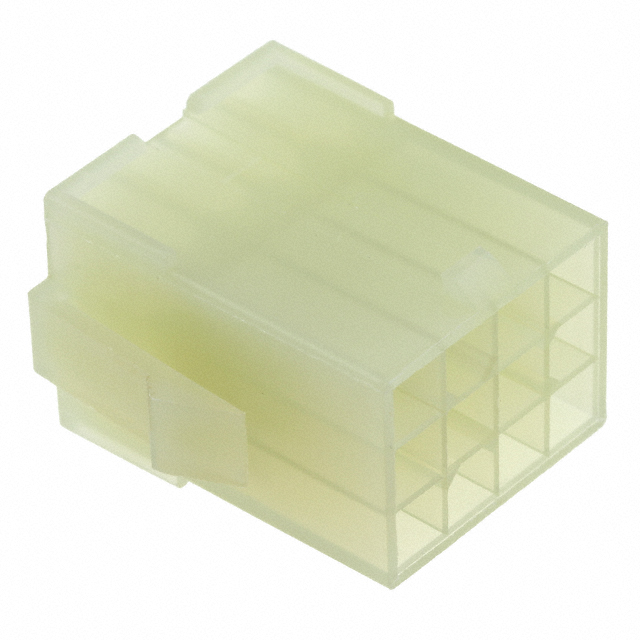

172333-1
ActiveTE Connectivity Raychem Cable Protection
MINI UNIVERSAL M-N-L HOUSING
Deep-Dive with AI
Search across all available documentation for this part.
172333-1
ActiveTE Connectivity Raychem Cable Protection
MINI UNIVERSAL M-N-L HOUSING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172333-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.39 | |||
Description
General part information
Mini-Universal MATE-N-LOK Series
12 Position, Receptacle, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-2, 4.2 mm [.165 in] Centerline, 3 Row, Mini-Universal MATE-N-LOK
