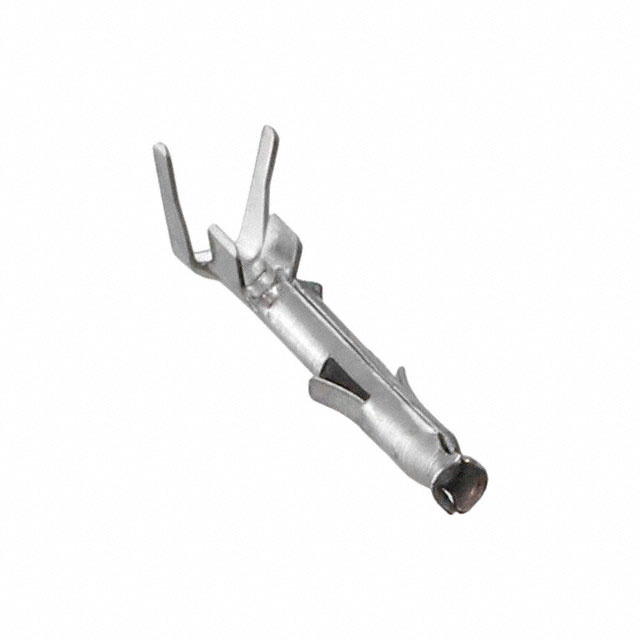

770904-1
ActiveTE Connectivity Raychem Cable Protection
CONTACT, MINI UNIVERSAL MATE-N-LOK SERIES, SOCKET, CRIMP, 18 AWG, TIN PLATED CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
770904-1
ActiveTE Connectivity Raychem Cable Protection
CONTACT, MINI UNIVERSAL MATE-N-LOK SERIES, SOCKET, CRIMP, 18 AWG, TIN PLATED CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 770904-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.14 | |
| 10 | $ 0.11 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 4500 | $ 0.07 | ||
| 9000 | $ 0.07 | |||
| 13500 | $ 0.06 | |||
| 31500 | $ 0.05 | |||
| 112500 | $ 0.05 | |||
Description
General part information
Mini-Universal MATE-N-LOK Series
The 770904-1 is a socket Crimp Contact made of brass with tin plated finish. It accepts 22 to 18AWG wire size. This contact is suitable for Mini-Universal MATE-N-LOK series connectors and plug housing.
