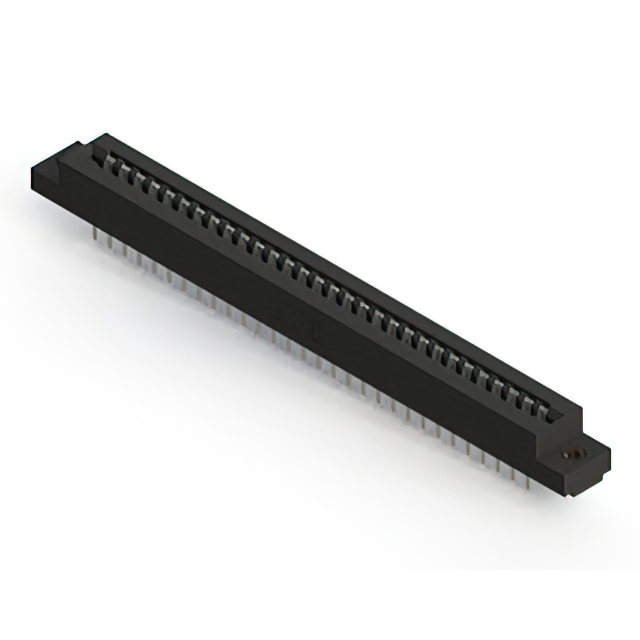

857-060-420-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 60POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-060-420-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 60POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-060-420-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-060 Series

Part	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Color	Gender	Termination Rows	Card Type	Contact Type	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Number of Positions	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish	Flange Feature	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 857-060-522-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Flush Mount M3 Threaded Insert Top Opening	2	10 Áin	0.25 Ám
EDAC Inc. 857-060-420-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount M3 Threaded Insert Top Opening	2
EDAC Inc. 857-060-520-212	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Side Mount Opening Unthreaded	2	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-060-520-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Flush Mount M3 Threaded Insert Top Opening	2	10 Áin	0.25 Ám
EDAC Inc. 857-060-420-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin		2
EDAC Inc. 857-060-540-204	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Wire Wrap	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Flush Mount Top Opening Unthreaded	2	10 Áin	0.25 Ám			3.96 mm	0.156 in
EDAC Inc. 857-060-522-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold		2	10 Áin	0.25 Ám
EDAC Inc. 857-060-456-202	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Board Edge Straddle Mount	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount Top Opening Unthreaded	2					3.25 mm	0.128 "	Card Extender
EDAC Inc. 857-060-460-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Board Edge Straddle Mount	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount M3 Threaded Insert Top Opening	2							Card Extender
EDAC Inc. 857-060-440-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Wire Wrap	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount M3 Threaded Insert Top Opening	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 112.38
Newark	Each	1	$ 134.86
		1	$ 134.86
		100	$ 84.55
		100	$ 84.55
		250	$ 73.77
		250	$ 73.77
		500	$ 63.27
		500	$ 63.27
		1000	$ 47.38
		1000	$ 47.38

Description

General part information

857-060 Series

60 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
