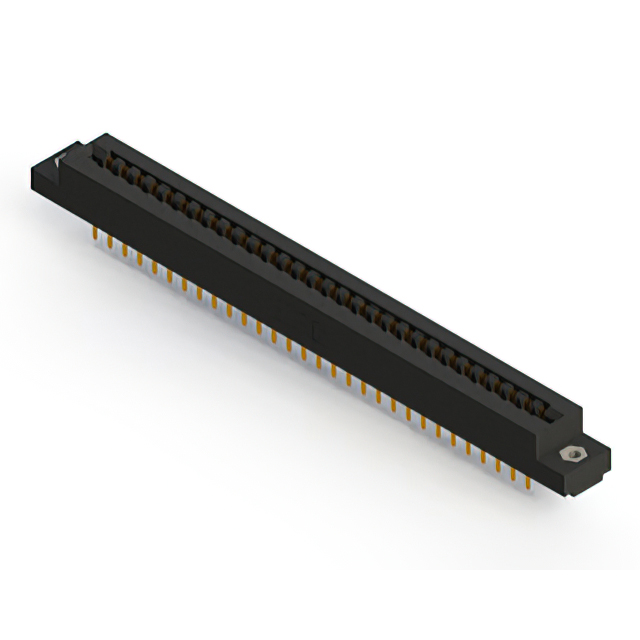

857-060-520-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 60POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-060-520-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 60POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-060-520-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-060 Series

Part	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Color	Gender	Termination Rows	Card Type	Contact Type	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Number of Positions	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish	Flange Feature	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 857-060-522-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Flush Mount M3 Threaded Insert Top Opening	2	10 Áin	0.25 Ám
EDAC Inc. 857-060-420-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount M3 Threaded Insert Top Opening	2
EDAC Inc. 857-060-520-212	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Side Mount Opening Unthreaded	2	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-060-520-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Flush Mount M3 Threaded Insert Top Opening	2	10 Áin	0.25 Ám
EDAC Inc. 857-060-420-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin		2
EDAC Inc. 857-060-540-204	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Wire Wrap	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold	Flush Mount Top Opening Unthreaded	2	10 Áin	0.25 Ám			3.96 mm	0.156 in
EDAC Inc. 857-060-522-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Gold		2	10 Áin	0.25 Ám
EDAC Inc. 857-060-456-202	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Board Edge Straddle Mount	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount Top Opening Unthreaded	2					3.25 mm	0.128 "	Card Extender
EDAC Inc. 857-060-460-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Solder	Board Edge Straddle Mount	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount M3 Threaded Insert Top Opening	2							Card Extender
EDAC Inc. 857-060-440-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Black	Female	2	Non Specified - Dual Edge	Semi Bellows	30	125 °C	-40 °C	Wire Wrap	Through Hole	60	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	Tin	Flush Mount M3 Threaded Insert Top Opening	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 112.38
Newark	Each	1	$ 134.86
		100	$ 84.55
		250	$ 73.77
		500	$ 63.27
		1000	$ 47.38

Description

General part information

857-060 Series

60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
