90683-1

Active

TE Application Tooling

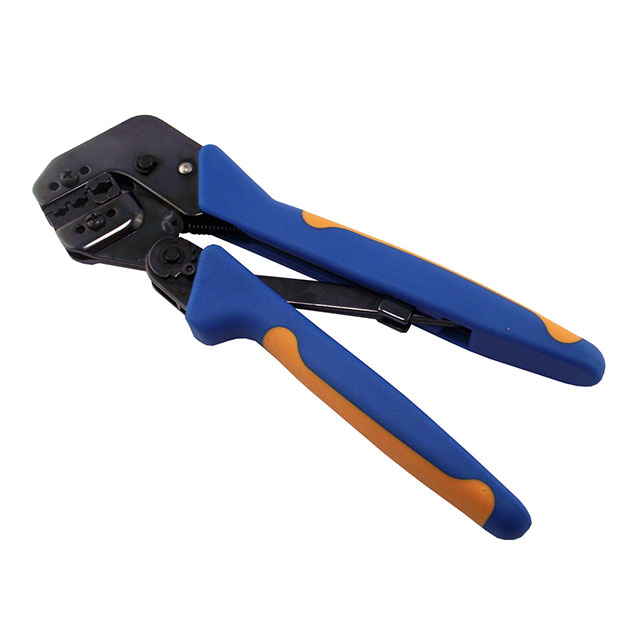

TOOL HAND CRIMPER 20-24AWG SIDE

Search across all available documentation for this part.

Active

TE Application Tooling

TOOL HAND CRIMPER 20-24AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	90683-1

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	20 AWG

Part	Tool Type	Wire Entry Location	For Use With/Related Products	Ratcheting	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Compatible Tools	For Use With/Related Products [Min]	For Use With/Related Products [Max]
TE Application Tooling 90683-1	Hand Crimper	Side Entry	Rectangular Contacts	Ratchet	24 AWG	20 AWG
TE Application Tooling 90683-2	Die Set		Rectangular Contacts				1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0	20 AWG	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Rectangular Contacts
