90683-2

Active

TE Application Tooling

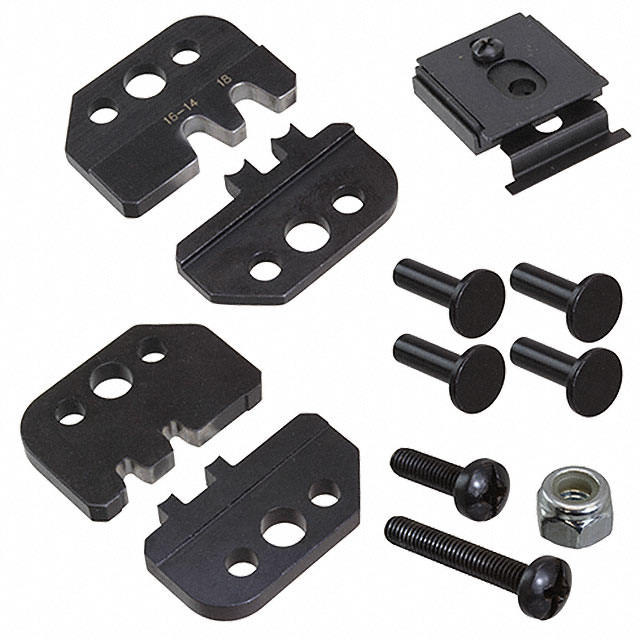

PROCRIMPER DIE ASSY DYNAMIC

Search across all available documentation for this part.

Active

TE Application Tooling

PROCRIMPER DIE ASSY DYNAMIC

Technical Specifications

Parameters and characteristics for this part

Specification	90683-2

Compatible Tools	9-1478240-0, 679304-1, 354940-1, 1213890-1, 1213890-2, 1490076-2
For Use With/Related Products	Rectangular Contacts
For Use With/Related Products [Max]	24 AWG
For Use With/Related Products [Min]	20 AWG
Tool Type	Die Set

Part	Tool Type	Wire Entry Location	For Use With/Related Products	Ratcheting	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Compatible Tools	For Use With/Related Products [Min]	For Use With/Related Products [Max]
TE Application Tooling 90683-1	Hand Crimper	Side Entry	Rectangular Contacts	Ratchet	24 AWG	20 AWG
TE Application Tooling 90683-2	Die Set		Rectangular Contacts				1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0	20 AWG	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 199.00

General part information

Tool Die Set For Rectangular Contacts, 20-24 AWG
