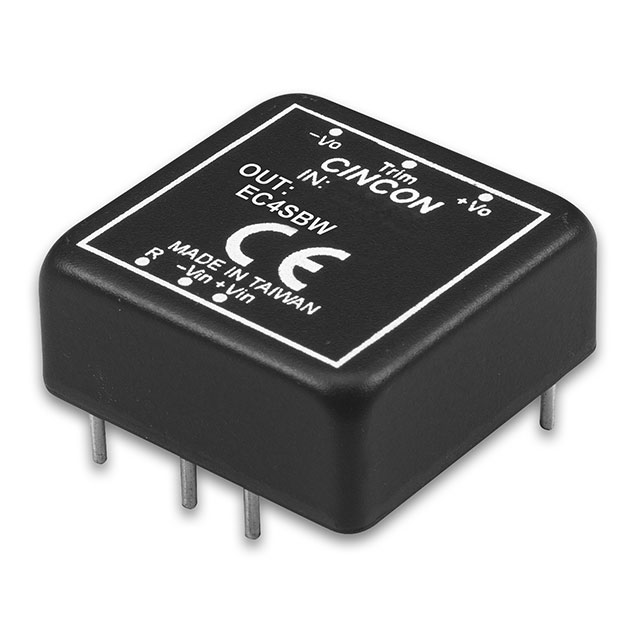

EC4SBW-48D15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-15V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC4SBW-48D15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-15V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC4SBW-48D15

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active High, Enable
Current - Output (Max)	660 mA
Current - Output (Max)	660 mA
Efficiency	88.5 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

EC4SBW Series

Part	Voltage - Input (Min) [Min]	Control Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Voltage - Input (Max) [Max]	Standard Number	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Applications	Voltage - Output 1	Approval Agency	Package / Case	Voltage - Isolation	Efficiency	Mounting Type	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC4SBW-48D15N	18 V	Active Low Enable	Isolated Module	85 °C	-40 °C	20 W	2	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	660 mA	660 mA	-15 V	ITE (Commercial)	15 V	CE	6-DIP Module	1.5 kV	88.5 %	Through Hole
Cincon Electronics Co. LTD EC4SBW-24S15	18 V	Active High Enable	Isolated Module	85 °C	-40 °C	20 W	1	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm				ITE (Commercial)	15 V	CE	6-DIP Module	1.5 kV	89 %	Through Hole	1.33 A
Cincon Electronics Co. LTD EC4SBW-24S33	18 V	Active High Enable	Isolated Module	85 °C	-40 °C	15 W	1	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm				ITE (Commercial)	3.3 V	CE	6-DIP Module	1.5 kV	88.5 %	Through Hole	4.5 A
Cincon Electronics Co. LTD EC4SBW-24S12N	18 V	Active Low Enable	Isolated Module	85 °C	-40 °C	20 W	1	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm				ITE (Commercial)	12 V	CE	6-DIP Module	1.5 kV	89 %	Through Hole	1.67 A
Cincon Electronics Co. LTD EC4SBW-24S12	9 V	Active High Enable	Isolated Module	85 °C	-40 °C	20 W	1	36 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm				ITE (Commercial)	12 V	CE	6-DIP Module	1.5 kV	89 %	Through Hole	1.67 A
Cincon Electronics Co. LTD EC4SBW-48S15N	18 V	Active Low Enable	Isolated Module	85 °C	-40 °C	20 W	1	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm				ITE (Commercial)	15 V	CE	6-DIP Module	1.5 kV	89 %	Through Hole	1.33 A
Cincon Electronics Co. LTD EC4SBW-48D12	18 V	Active High Enable	Isolated Module	85 °C	-40 °C	20 W	2	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	830 mA	830 mA	-12 V	ITE (Commercial)	12 V	CE	6-DIP Module	1.5 kV	88.5 %	Through Hole
Cincon Electronics Co. LTD EC4SBW-48D15	18 V	Active High Enable	Isolated Module	85 °C	-40 °C	20 W	2	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	660 mA	660 mA	-15 V	ITE (Commercial)	15 V	CE	6-DIP Module	1.5 kV	88.5 %	Through Hole
Cincon Electronics Co. LTD EC4SBW-24D12N	18 V	Active Low Enable	Isolated Module	85 °C	-40 °C	20 W	2	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	830 mA	830 mA	-12 V	ITE (Commercial)	12 V	CE	6-DIP Module	1.5 kV	88.5 %	Through Hole
Cincon Electronics Co. LTD EC4SBW-24S05N	18 V	Active Low Enable	Isolated Module	85 °C	-40 °C	20 W	1	75 V	62368-1	OCP OVP Remote On/Off SCP UVLO	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm				ITE (Commercial)	5 V	CE	6-DIP Module	1.5 kV	90.5 %	Through Hole	4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 35.05
		5	$ 33.66
		10	$ 33.32
		25	$ 32.66
		50	$ 31.68
		100	$ 30.09

Description

General part information

EC4SBW Series

Isolated Module DC DC Converter 2 Output 15V -15V 660mA, 660mA 18V - 75V Input
