1415118

Active

Phoenix Contact

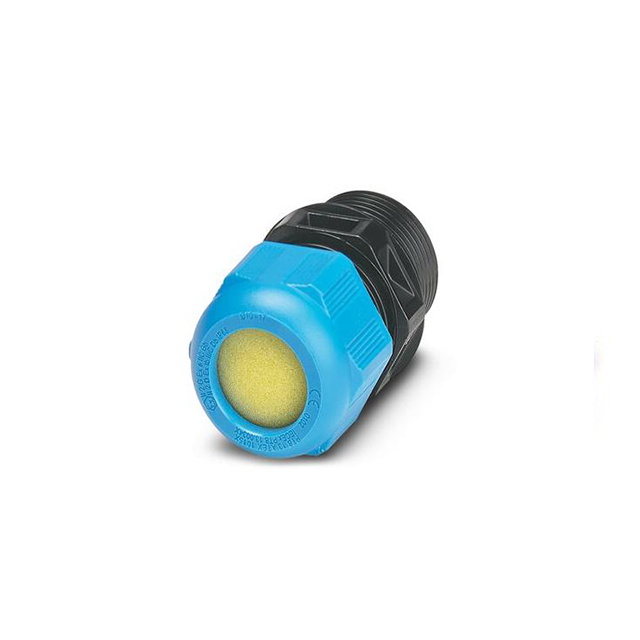

CABLE GLAND 10-16.99MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-16.99MM M25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415118	G-ESIS-M25 Series

Color	Black, Blue	Black, Blue
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M25	M25
Type	Cable Gland	Cable Gland

CABLE GLAND 10-16.99MM M25

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ingress Protection	Thread Size	Includes	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color
Phoenix Contact 1415109	-40 °C	75 ░C	Cable Gland	IP66/IP68	M25	Seal	0.591 in	15 mm	16.99 mm	0.669 in	Polyamide (PA), Nylon	0.394 in	10 mm	Black
Phoenix Contact 1415118	-40 °C	75 ░C	Cable Gland	IP66/IP68	M25	Seal	0.591 in	15 mm	16.99 mm	0.669 in	Polyamide (PA), Nylon	0.394 in	10 mm	Black, Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.80

General part information

Cable Gland Polyamide (PA), Nylon M25 Black, Blue

Technical documentation and resources
