1415109

Active

Phoenix Contact

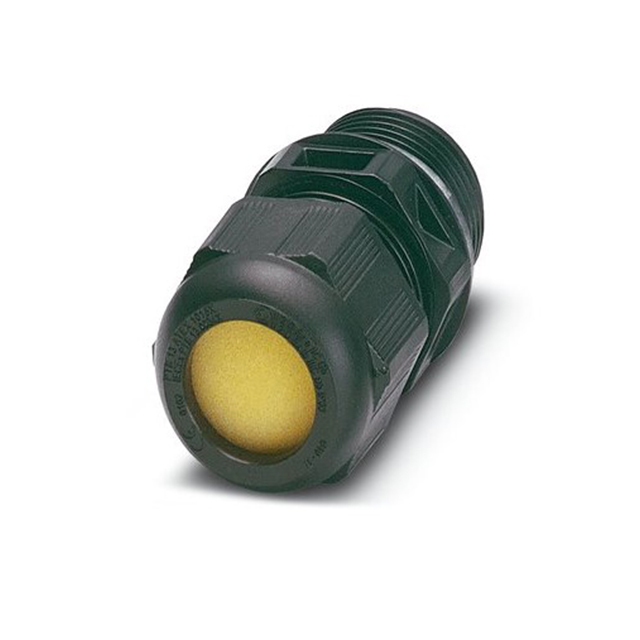

CABLE GLAND 10-16.99MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-16.99MM M25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.80

General part information

Cable Gland Polyamide (PA), Nylon M25 Black

Technical documentation and resources

Specification	1415109	G-ESIS-M25 Series

Color	Black	Black, Blue
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M25	M25
Type	Cable Gland	Cable Gland

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ingress Protection	Thread Size	Includes	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color
Phoenix Contact 1415109	-40 °C	75 ░C	Cable Gland	IP66/IP68	M25	Seal	0.591 in	15 mm	16.99 mm	0.669 in	Polyamide (PA), Nylon	0.394 in	10 mm	Black
Phoenix Contact 1415118	-40 °C	75 ░C	Cable Gland	IP66/IP68	M25	Seal	0.591 in	15 mm	16.99 mm	0.669 in	Polyamide (PA), Nylon	0.394 in	10 mm	Black, Blue
