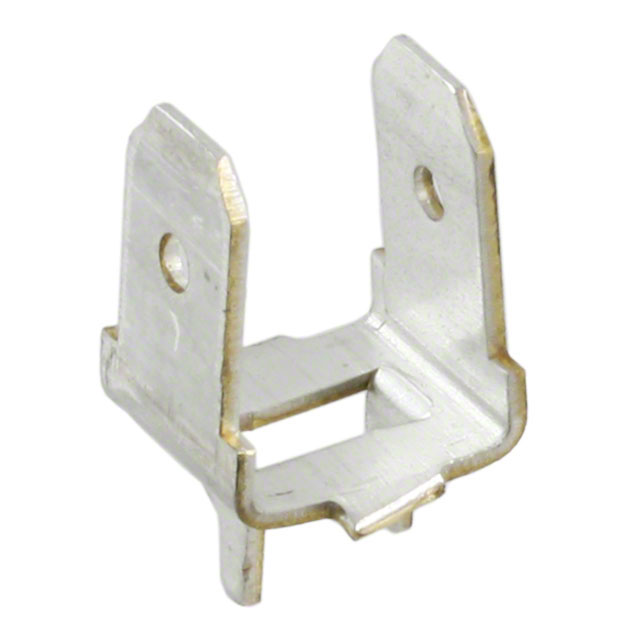

62221-1

Active

TE Connectivity Raychem Cable Protection

187 FASTON TAB TPBR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsENG_CD_62221_S_baseFilename.pdf FASTON PCB Tabs and Receptacles +2

62221-1

Active

TE Connectivity Raychem Cable Protection

187 FASTON TAB TPBR

Deep-Dive with AI

DocumentsENG_CD_62221_S_baseFilename.pdf FASTON PCB Tabs and Receptacles +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	62221-1

Contact Finish	Tin
Contact Material	Brass
Features	2 Tabs
Gender	Male
Insulation	Non-Insulated
Mounting Type	Through Hole
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Angled - 90°
Termination	Stake

FASTON 187 Series

Terminals 187 FASTON RECP 16-12 016 TPBR

Part	Gender	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Terminal Type	Note	Material	Number of Positions	Color	Terminal Size	Terminal Size	Mounting Type	Style	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Tab Length	Tab Length	Tab Width	Tab Width	Contact Finish	Contact Material	Termination	Tab Thickness	Tab Thickness	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	For Use With/Related Products [y]	For Use With/Related Products [x]	For Use With/Related Products [x]	For Use With/Related Products [y]	Features
TE Connectivity Raychem Cable Protection 170823-3	Female Receptacle	0.25 in	Quick Connects	6.35 mm	Disconnect Quick Connect	Contacts Not Included	Vinyl Chloride	1	Clear	6.35 mm	0.25 in	Free Hanging (In-Line)	Sleeve
TE Connectivity Raychem Cable Protection 8-640917-1	Female				Standard				Red			Free Hanging (In-Line)		0.135 in	3.43 mm	20.32 mm	0.8 in	22 AWG	17.5 AWG	Non-Mating End Insulated	6.35 mm	0.25 in	4.75 mm	0.187 in	Tin	Brass	Crimp	0.02 "	0.51 mm
TE Connectivity Raychem Cable Protection 63477-1	Female				Standard							Free Hanging (In-Line)						20 AWG	16 AWG	Non-Insulated	6.35 mm	0.25 in	4.75 mm	0.187 in		Brass	Crimp	0.032 in	0.81 mm	3.3 mm	2.29 mm	0.13 in	0.09 in
TE Connectivity Raychem Cable Protection 170823-8	Female Receptacle	0.11 in	Quick Connects	2.79 mm	Disconnect Quick Connect	Contacts Not Included	Vinyl Chloride	1	Clear	2.79 mm	0.11 in	Free Hanging (In-Line)	Sleeve
TE Connectivity Raychem Cable Protection 63316-5	Female				Angled - 90° Flag							Free Hanging (In-Line) Right Angle						18 AWG	14 AWG	Non-Insulated			4.75 mm	0.187 in	Tin	Brass	Crimp	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 62747-1	Male				Angled - 90°							Through Hole								Non-Insulated	6.35 mm	0.25 in	4.75 mm	0.187 in	Tin	Brass	Stake	0.02 "	0.51 mm
TE Connectivity Raychem Cable Protection 360041-1	Male Tab		Quick Connects		Disconnect Quick Connect	Contacts Not Included	Nylon	1	Natural	4.75 mm	0.187 "	Free Hanging (In-Line)	Cap																					0.02 in	4.75 mm	0.187 in	0.51 mm
TE Connectivity Raychem Cable Protection 61664-1	Male				Angled - 45°							Board Chassis								Non-Insulated			4.75 mm	0.187 in	Tin	Brass	Rivet Screw Stud	0.02 "	0.51 mm
TE Connectivity Raychem Cable Protection 1-170823-3	Female Receptacle	0.187 "		4.75 mm	Disconnect Quick Connect	Contacts Not Included	Vinyl Chloride	1	Clear	4.75 mm	0.187 "	Free Hanging (In-Line)	Sleeve
TE Connectivity Raychem Cable Protection 62221-1	Male				Angled - 90°							Through Hole								Non-Insulated			4.75 mm	0.187 in	Tin	Brass	Stake	0.02 "	0.51 mm									2 Tabs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.15
		10	$ 0.13
		25	$ 0.13
		50	$ 0.13
		100	$ 0.12
		250	$ 0.10
		500	$ 0.10
	Tape & Reel (TR)	10000	$ 0.10

Description

General part information

FASTON 187 Series

Terminals 187 FASTON RECP 16-12 016 TPBR
