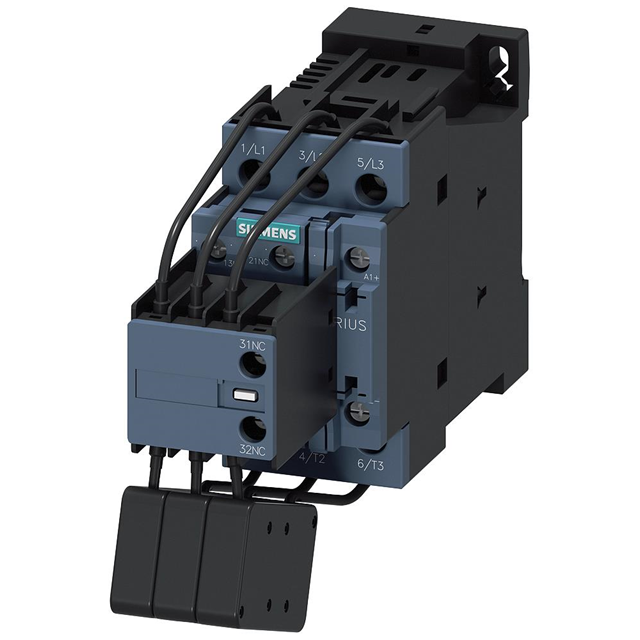

3RT26261NB35

Active

Siemens

CAP CONTACTOR 20KVAR 1NO+2NC 21-

Search across all available documentation for this part.

Active

Siemens

CAP CONTACTOR 20KVAR 1NO+2NC 21-

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Contact Rating (Current)	Features	Mounting Type	Operate Time	Must Operate Voltage	Coil Power	Coil Voltage	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Termination Style	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RT26261AP05	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	184 VAC	77 VA	230 VAC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261BF45	18 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	170 ms	88 VDC	5.9 W	110 VDC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261BB45	18 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	170 ms	19.2 VDC	5.9 W	24 VDC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261AC25	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	19.2 VAC	77 VA	24 VAC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261NB35	50 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	70 ms		6.7 VA		3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal	28 VAC/DC	21 VAC/DC
Siemens 3RT26261AK65	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	96 VAC	77 VA	120 VAC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261AF05	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	88 VAC/DC	77 VA	110 VAC/DC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 333.57
