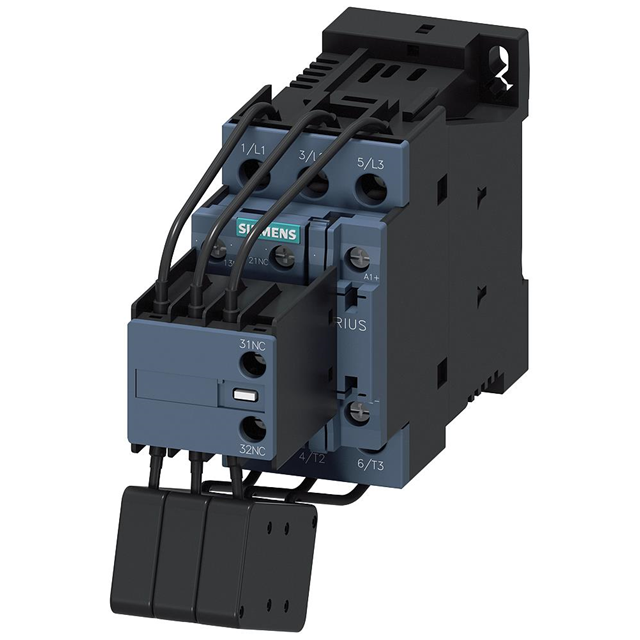

3RT26261BB45

Active

Siemens

CAP CONTACTOR 20KVAR 1NO+2NC 24V

Search across all available documentation for this part.

Active

Siemens

CAP CONTACTOR 20KVAR 1NO+2NC 24V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Contact Rating (Current)	Features	Mounting Type	Operate Time	Must Operate Voltage	Coil Power	Coil Voltage	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Termination Style	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RT26261AP05	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	184 VAC	77 VA	230 VAC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261BF45	18 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	170 ms	88 VDC	5.9 W	110 VDC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261BB45	18 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	170 ms	19.2 VDC	5.9 W	24 VDC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261AC25	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	19.2 VAC	77 VA	24 VAC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261NB35	50 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	70 ms		6.7 VA		3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal	28 VAC/DC	21 VAC/DC
Siemens 3RT26261AK65	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	96 VAC	77 VA	120 VAC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal
Siemens 3RT26261AF05	16 ms	29 A	Auxiliary Contacts	Chassis Mount DIN Rail	40 ms	88 VAC/DC	77 VA	110 VAC/DC	3PST-NO (3 Form A)	-25 °C	60 °C	690 VAC	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 274.81
