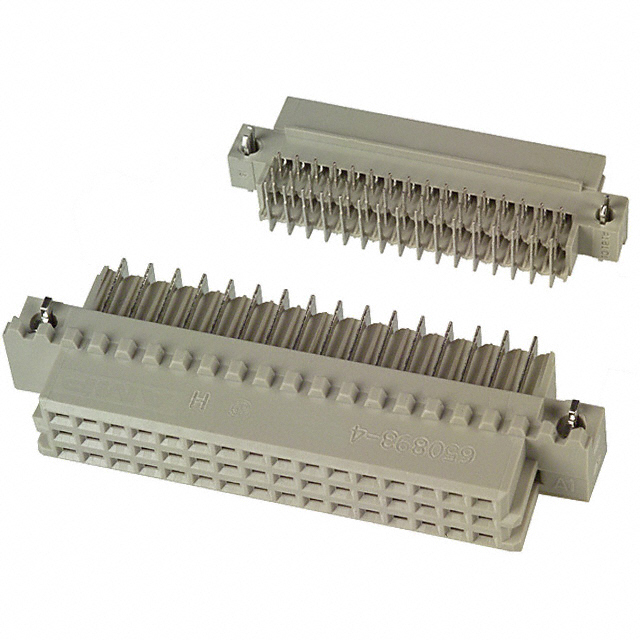

650893-4

Active

TE Connectivity Raychem Cable Protection

048 EURO TYPE R RECEPT BL ASSY ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

650893-4

Active

TE Connectivity Raychem Cable Protection

048 EURO TYPE R RECEPT BL ASSY ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	650893-4

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Material - Insulation	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	1/2 R
Termination	Solder

Eurocard Type R Series

DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin

Part	Mounting Type	Material - Insulation	Number of Positions	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Contact Finish	Pitch [x]	Pitch [x]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Style	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Style
TE Connectivity Raychem Cable Protection 5650919-5	Through Hole	Polymer Thermoplastic Glass Filled	120	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Male Pins Plug	R
TE Connectivity Raychem Cable Protection 5650461-4	Through Hole Right Angle	Polymer Thermoplastic Glass Filled	96	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Receptacle Female Sockets	R
TE Connectivity Raychem Cable Protection 148360-5	Through Hole Right Angle	Polyester Glass Filled	120	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Press-Fit	-55 °C	125 °C	Receptacle Female Sockets	R
TE Connectivity Raychem Cable Protection 650479-5	Through Hole	Polyester Glass Filled	48	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Male Pins Plug	R/2 (1/2 R)
TE Connectivity Raychem Cable Protection 650919-5	Through Hole	Polyester Glass Filled	120	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Male Pins Plug	R
TE Connectivity Raychem Cable Protection 650921-5	Through Hole	Polyester Glass Filled	120	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Press-Fit	-55 °C	125 °C	Male Pins Plug	R
TE Connectivity Raychem Cable Protection 650870-4	Through Hole Right Angle	Polyester Glass Filled	96		3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Receptacle Female Sockets	R	64	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 5650946-5	Through Hole Right Angle	Polymer Thermoplastic Glass Filled	48		3	UL94 V-0		2.54 mm	0.1 in	Solder	-55 °C	125 °C	Header Male Pins	C/2	32			1/2 C
TE Connectivity Raychem Cable Protection 650893-4	Through Hole Right Angle	Polyester Glass Filled	48	All	3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Receptacle Female Sockets	1/2 R		0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 5650936-5	Through Hole	Polymer Thermoplastic Glass Filled	48		3	UL94 V-0	Gold	2.54 mm	0.1 in	Solder	-55 °C	125 °C	Male Pins Plug	R/2 (1/2 R)	32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	560	$ 6.86
Newark	Each	250	$ 6.75
		500	$ 6.04

Description

General part information

Eurocard Type R Series

DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin
