Eurocard Type R Series
DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog
DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin
Beta
⌘K
DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin
DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin
DIN 41612 Connectors Type R Pin Header 96 P w/ Action Pin
| Part | Mounting Type | Material - Insulation | Number of Positions | Number of Positions Loaded | Number of Rows | Material Flammability Rating | Contact Finish | Pitch [x] | Pitch [x] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Style | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Through Hole | Polymer Thermoplastic Glass Filled | 120 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Male Pins Plug | R | ||||

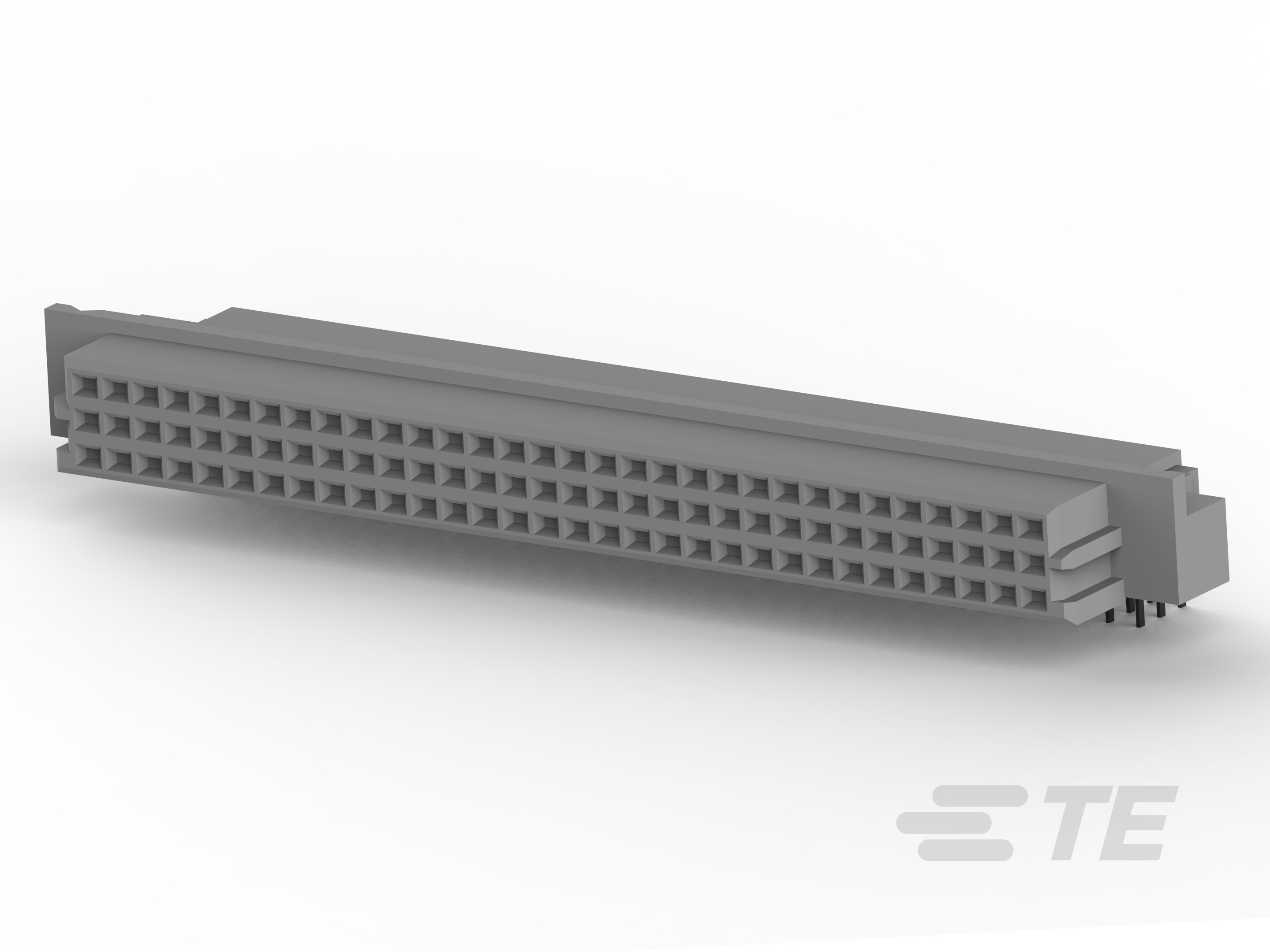

TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Polymer Thermoplastic Glass Filled | 96 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Receptacle Female Sockets | R | ||||
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Polyester Glass Filled | 120 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Press-Fit | -55 °C | 125 °C | Receptacle Female Sockets | R | ||||
TE Connectivity Raychem Cable Protection | Through Hole | Polyester Glass Filled | 48 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Male Pins Plug | R/2 (1/2 R) | ||||
TE Connectivity Raychem Cable Protection | Through Hole | Polyester Glass Filled | 120 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Male Pins Plug | R | ||||
TE Connectivity Raychem Cable Protection | Through Hole | Polyester Glass Filled | 120 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Press-Fit | -55 °C | 125 °C | Male Pins Plug | R | ||||
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Polyester Glass Filled | 96 | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Receptacle Female Sockets | R | 64 | 0.76 Ám | 30 Áin | ||
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Polymer Thermoplastic Glass Filled | 48 | 3 | UL94 V-0 | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Header Male Pins | C/2 | 32 | 1/2 C | ||||
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Polyester Glass Filled | 48 | All | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Receptacle Female Sockets | 1/2 R | 0.76 Ám | 30 Áin | ||
TE Connectivity Raychem Cable Protection | Through Hole | Polymer Thermoplastic Glass Filled | 48 | 3 | UL94 V-0 | Gold | 2.54 mm | 0.1 in | Solder | -55 °C | 125 °C | Male Pins Plug | R/2 (1/2 R) | 32 |
