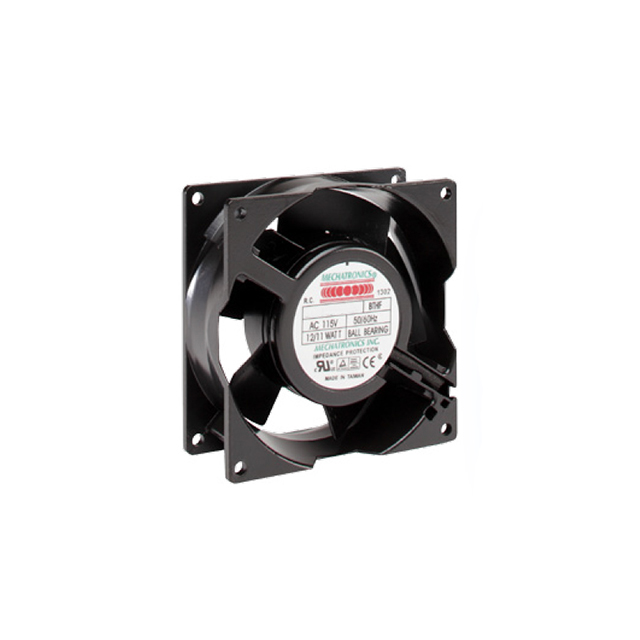

UF92AM12-BWHR-F

Active

Mechatronics Fan Group

FAN AXIAL 92X38MM 115V HIGH TEMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInstallation Instructions AC Axial Part Numbering Guide +1

UF92AM12-BWHR-F

Active

Mechatronics Fan Group

FAN AXIAL 92X38MM 115V HIGH TEMP

Deep-Dive with AI

DocumentsInstallation Instructions AC Axial Part Numbering Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF92AM12-BWHR-F	UF92A Series

Air Flow	1.43 mł/min	1.29 - 1.43 mł/min
Air Flow	51 CFM	46 - 51 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL, CE, ETL, TUV, cETL
Bearing Type	Ball	Ball
Current Rating (Amps)	120 mA	0.09 - 120 A
Current Rating (Amps)	-	0.12 A
Current Rating (Amps)	-	0.06 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Dual Voltage, Conformal Coating
Material - Blade	Metal	Metal, Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	42 dB	38 - 42 dB
Operating Temperature [Max]	90 °C	70 - 90 °C
Operating Temperature [Max]	90 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	11 W	11 - 12 W
RPM	3200 RPM	3200 - 3300 RPM
Size / Dimension [x]	92.5 mm	92.5 mm
Size / Dimension [z]	92.5 mm	92.5 mm
Static Pressure	74.7 Pa	74.7 - 79.7 Pa
Static Pressure	0.3 in H2O	0.3 - 0.32 in H2O
Termination	2 Wire Leads	2 Wire Leads, 2 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	430.01 g	430.01 - 449.96 g
Weight	0.948 lb	0.948 - 0.992 lb
Width [y]	38 mm	38 mm

UF92A Series

FAN 92X38MM 115/230V HIGH TEMP

Part	Weight	Weight	Material - Frame	Voltage - Rated [Max]	Voltage - Rated [Min]	Width [y]	Material - Blade	Noise	Static Pressure	Static Pressure	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	RPM	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Power (Watts)	Termination	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Fan Type	Voltage - Rated	Current Rating (Amps)
Mechatronics Fan Group UF92AM12/23-BWHR	430.01 g	0.948 lb	Aluminum	230 VAC	115 VAC	38 mm	Metal	42 dB	74.7 Pa	0.3 in H2O	CE, cUL, TUV, UL	92.5 mm	92.5 mm	Ball	3200 RPM	0.12 A	0.06 A	11 W	2 Wire Leads	1.43 mł/min	51 CFM	-40 °C	-40 °C	90 °C	90 °C	Dual Voltage	Tubeaxial
Mechatronics Fan Group UF92A12-BTHR-CC	449.96 g	0.992 lb				38 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	79.7 Pa	0.32 in H2O	CE, cETL, ETL, TUV			Ball	3300 RPM			12 W	2 Terminals	1.29 mł/min	46 CFM	-40 °C	-40 °C	70 °C	70 °C	Conformal Coating	Tubeaxial	115 VAC
Mechatronics Fan Group UF92AM23-BTHR-F	430.01 g	0.948 lb				38 mm	Metal	42 dB	74.7 Pa	0.3 in H2O	CE, cUL, TUV, UL	92.5 mm	92.5 mm	Ball	3300 RPM			11 W	2 Terminals	1.43 mł/min	51 CFM	-40 °C	-40 °C	90 °C	90 °C		Tubeaxial	230 VAC	0.09 A
Mechatronics Fan Group UF92A23-BWHR	449.96 g	0.992 lb	Aluminum			38 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	79.7 Pa	0.32 in H2O	CE, cETL, ETL, TUV			Ball	3300 RPM			12 W	2 Wire Leads	1.29 mł/min	46 CFM	-40 °C	-40 °C	70 °C	70 °C		Tubeaxial	230 VAC	0.09 A
Mechatronics Fan Group UF92AM12-BWHR-F	430.01 g	0.948 lb	Aluminum			38 mm	Metal	42 dB	74.7 Pa	0.3 in H2O	CE, cUL, TUV, UL	92.5 mm	92.5 mm	Ball	3200 RPM			11 W	2 Wire Leads	1.43 mł/min	51 CFM	-40 °C	-40 °C	90 °C	90 °C		Tubeaxial	115 VAC	120 mA
Mechatronics Fan Group UF92A12-BWHR	449.96 g	0.992 lb	Aluminum			38 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	79.7 Pa	0.32 in H2O	CE, cETL, ETL, TUV			Ball	3300 RPM			12 W	2 Wire Leads	1.29 mł/min	46 CFM	-40 °C	-40 °C	70 °C	70 °C		Tubeaxial	115 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.60
		10	$ 23.72
		25	$ 22.94

Description

General part information

UF92A Series

Fan Tubeaxial 115VAC Square - 92.5mm L x 92.5mm H Ball 51.0 CFM (1.43m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Installation Instructions

Datasheet

AC Axial Part Numbering Guide

Datasheet
