UF92A12-BTHR-CC

Active

Mechatronics Fan Group

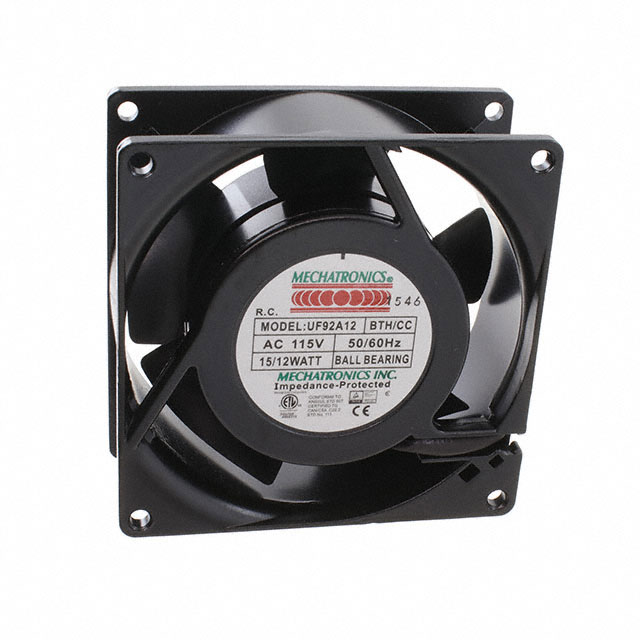

FAN AXIAL 92X38MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF92A12-BTHR-CC

Active

Mechatronics Fan Group

FAN AXIAL 92X38MM 115VAC TERM

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.60
		10	$ 23.38
		25	$ 22.49
		50	$ 21.01
		100	$ 19.38
		250	$ 19.09
		500	$ 18.94

Description

General part information

UF92A Series

Fan Tubeaxial 115VAC Square - 92mm L x 92mm H Ball 46.0 CFM (1.29m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF92A12-BTHR-CC	UF92A Series

Air Flow	1.29 mł/min	1.29 - 1.43 mł/min
Air Flow	46 CFM	46 - 51 CFM
Approval Agency	CE, ETL, TUV, cETL	CE, cUL, TUV, UL, CE, ETL, TUV, cETL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.12 A
Current Rating (Amps)	-	0.06 A
Current Rating (Amps)	-	0.09 - 120 A
Fan Type	Tubeaxial	Tubeaxial
Features	Conformal Coating	Dual Voltage, Conformal Coating
Material - Blade	Polybutylene Terephthalate (PBT)	Metal, Polybutylene Terephthalate (PBT)
Material - Frame	-	Aluminum
Noise	38 dB(A)	38 - 42 dB
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	12 W	11 - 12 W
RPM	3300 RPM	3200 - 3300 RPM
Size / Dimension	-	92.5 mm
Size / Dimension	-	92.5 mm
Static Pressure	0.32 in H2O	0.3 - 0.32 in H2O
Static Pressure	79.7 Pa	74.7 - 79.7 Pa
Termination	2 Terminals	2 Wire Leads, 2 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	449.96 g	430.01 - 449.96 g
Weight	0.992 lb	0.948 - 0.992 lb
Width [y]	38 mm	38 mm

UF92A Series

FAN 92X38MM 115/230V HIGH TEMP

Part	Weight	Weight	Material - Frame	Voltage - Rated [Max]	Voltage - Rated [Min]	Width [y]	Material - Blade	Noise	Static Pressure	Static Pressure	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	RPM	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Power (Watts)	Termination	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Fan Type	Voltage - Rated	Current Rating (Amps)
Mechatronics Fan Group UF92AM12/23-BWHR	430.01 g	0.948 lb	Aluminum	230 VAC	115 VAC	38 mm	Metal	42 dB	74.7 Pa	0.3 in H2O	CE, cUL, TUV, UL	92.5 mm	92.5 mm	Ball	3200 RPM	0.12 A	0.06 A	11 W	2 Wire Leads	1.43 mł/min	51 CFM	-40 °C	-40 °C	90 °C	90 °C	Dual Voltage	Tubeaxial
Mechatronics Fan Group UF92A12-BTHR-CC	449.96 g	0.992 lb				38 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	79.7 Pa	0.32 in H2O	CE, cETL, ETL, TUV			Ball	3300 RPM			12 W	2 Terminals	1.29 mł/min	46 CFM	-40 °C	-40 °C	70 °C	70 °C	Conformal Coating	Tubeaxial	115 VAC
Mechatronics Fan Group UF92AM23-BTHR-F	430.01 g	0.948 lb				38 mm	Metal	42 dB	74.7 Pa	0.3 in H2O	CE, cUL, TUV, UL	92.5 mm	92.5 mm	Ball	3300 RPM			11 W	2 Terminals	1.43 mł/min	51 CFM	-40 °C	-40 °C	90 °C	90 °C		Tubeaxial	230 VAC	0.09 A
Mechatronics Fan Group UF92A23-BWHR	449.96 g	0.992 lb	Aluminum			38 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	79.7 Pa	0.32 in H2O	CE, cETL, ETL, TUV			Ball	3300 RPM			12 W	2 Wire Leads	1.29 mł/min	46 CFM	-40 °C	-40 °C	70 °C	70 °C		Tubeaxial	230 VAC	0.09 A
Mechatronics Fan Group UF92AM12-BWHR-F	430.01 g	0.948 lb	Aluminum			38 mm	Metal	42 dB	74.7 Pa	0.3 in H2O	CE, cUL, TUV, UL	92.5 mm	92.5 mm	Ball	3200 RPM			11 W	2 Wire Leads	1.43 mł/min	51 CFM	-40 °C	-40 °C	90 °C	90 °C		Tubeaxial	115 VAC	120 mA
Mechatronics Fan Group UF92A12-BWHR	449.96 g	0.992 lb	Aluminum			38 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	79.7 Pa	0.32 in H2O	CE, cETL, ETL, TUV			Ball	3300 RPM			12 W	2 Wire Leads	1.29 mł/min	46 CFM	-40 °C	-40 °C	70 °C	70 °C		Tubeaxial	115 VAC
