GSB3211311WEU

Active

Amphenol ICC (Commercial Products)

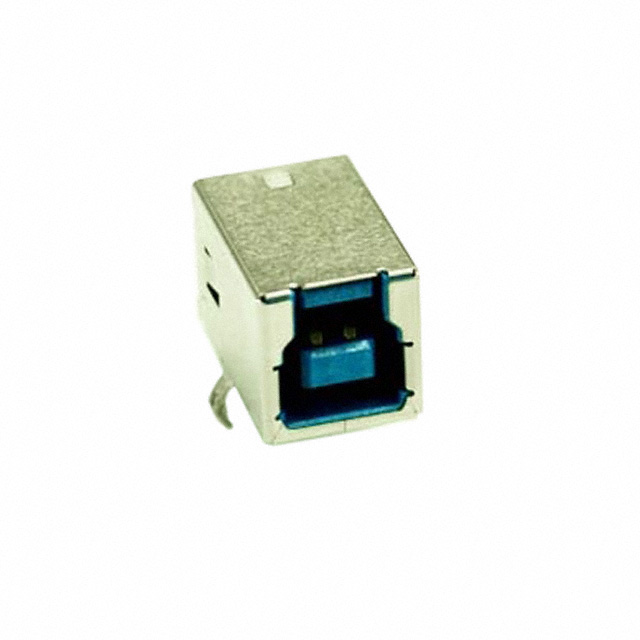

CONN RCPT USB3.0 TYPEB 9POS R/A

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB3.0 TYPEB 9POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	GSB3211311WEU

Connector Type	USB-B
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.25 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Copper Alloy
Termination	Solder
Voltage - Rated	30 VAC

Part	Number of Ports	Gender	Voltage - Rated	Connector Type	Contact Finish	Current Rating (Amps)	Number of Contacts	Mounting Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material	Material Flammability Rating	Termination	Insulation Color
Amphenol ICC (Commercial Products) GSB3211311WEU	1	Receptacle	30 VAC	USB-B	Gold	0.25 A 1.8 A	9	Through Hole Right Angle	Horizontal	-20 C	60 °C	Copper Alloy	UL94 V-0	Solder
Amphenol ICC (Commercial Products) GSB327133WEU	1	Plug	30 VAC	USB-B	Gold	0.25 A 1.8 A	9	Free Hanging (In-Line)		-20 C	60 °C	Steel (SPCC)	UL94 V-0	Solder	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
