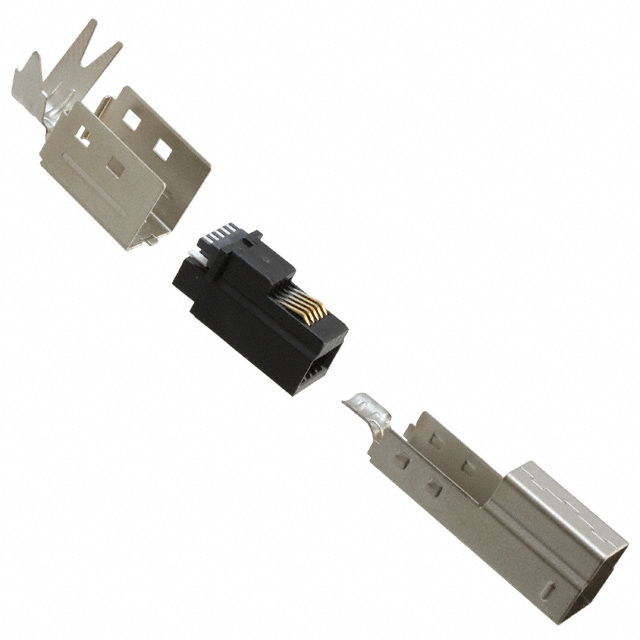

Specification	GSB327133WEU

Connector Type	USB-B (USB TYPE-B)
Contact Finish	Gold
Current Rating Options	0.25A, 1.8A
Gender	Plug
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Contacts	9
Number of Ports	1
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Shell/Shielding Material	Steel (SPCC)
Specifications	Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1
Termination	Solder
Voltage - Rated	30 VAC

GSB32 Series

Part	Contact Finish	Material Flammability Rating	Shell/Shielding Material	Connector Type	Voltage - Rated	Gender	Number of Contacts	Operating Temperature (Max)	Operating Temperature (Min)	Specifications	Number of Ports	Current Rating Options	Mounting Type	Features	Mounting Feature	Termination	Insulation Color
Amphenol ICC (Commercial Products) GSB3211311WEU	Gold	UL94 V-0	Copper Alloy	USB-B (USB TYPE-B)	30 VAC	Receptacle	9	60 °C	-20 °C	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	1	0.25A 1.8A	Right Angle Through Hole	Board Lock	Horizontal	Solder
Amphenol ICC (Commercial Products) GSB327133WEU	Gold	UL94 V-0	Steel (SPCC)	USB-B (USB TYPE-B)	30 VAC	Plug	9	60 °C	-20 °C	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	1	0.25A 1.8A	Free Hanging (In-Line)			Solder	Black
