MC19MCSGR

Active

BULGIN LIMITED

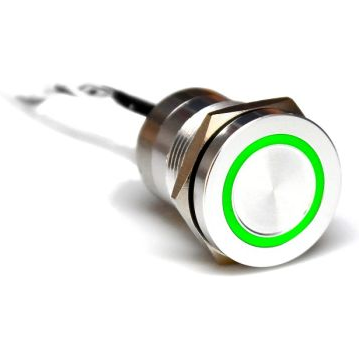

SWITCH PUSH BUTTON ON (OFF) DPDT FLUSH ROUND BUTTON 0.5A 24VDC MOMENTARY PANEL MOUNT WIRE LEAD BULK

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSH BUTTON ON (OFF) DPDT FLUSH ROUND BUTTON 0.5A 24VDC MOMENTARY PANEL MOUNT WIRE LEAD BULK

Technical Specifications

Parameters and characteristics for this part

Specification	MC19MCSGR

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Green/Red, LED
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	12 V

Part	Ingress Protection	Mounting Type	Type	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Color - Actuator/Cap	Termination Style	Illumination Type, Color	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Marking
BULGIN LIMITED MC22MCSGR	IP68 IP69K	Panel Mount Front	Capacitive Illuminated	500 mA	Button Flush Round	12 V	50000000 Cycles	SPST-NC	55 °C	-25 °C	50000000 Cycles	Silver	Wire Leads	Green/Red LED	On-Mom	22.2 mm	No Marking
BULGIN LIMITED MC19MCSRG	IP68 IP69K	Panel Mount Front	Capacitive Illuminated	500 mA	Button Flush Round	12 V	50000000 Cycles	SPST-NC	55 °C	-25 °C	50000000 Cycles	Silver	Wire Leads	Green/Red LED	On-Mom	19.2 mm	No Marking
BULGIN LIMITED MC19MCSGR	IP68 IP69K	Panel Mount Front	Capacitive Illuminated	500 mA	Button Flush Round	12 V	50000000 Cycles	SPST-NC	55 °C	-25 °C	50000000 Cycles	Silver	Wire Leads	Green/Red LED	On-Mom	19.2 mm	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Capacitive, Illuminated Panel Mount, Front
