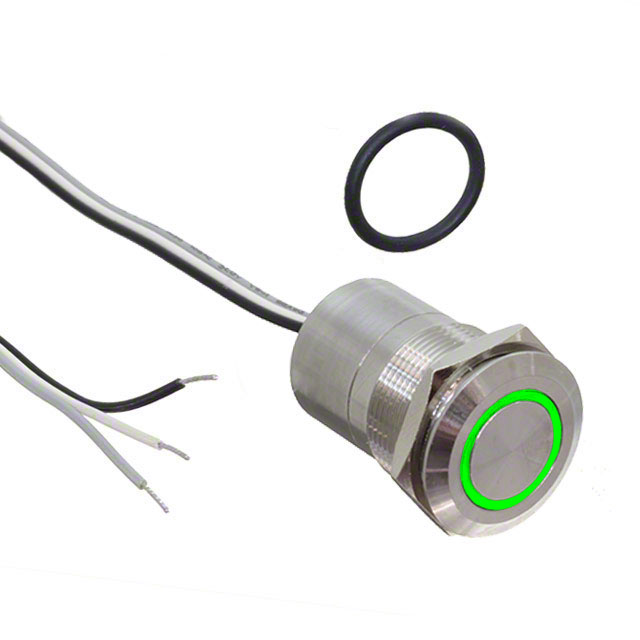

MC19MCSRG

Active

BULGIN LIMITED

SWITCH: CAPACITIVE; POS: 2; SPST-NC; 0.01A/12VDC; IP68; ON-(OFF)

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH: CAPACITIVE; POS: 2; SPST-NC; 0.01A/12VDC; IP68; ON-(OFF)

Technical Specifications

Parameters and characteristics for this part

Specification	MC19MCSRG

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Green/Red, LED
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	12 V

Part	Ingress Protection	Mounting Type	Type	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Color - Actuator/Cap	Termination Style	Illumination Type, Color	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Marking
BULGIN LIMITED MC22MCSGR	IP68 IP69K	Panel Mount Front	Capacitive Illuminated	500 mA	Button Flush Round	12 V	50000000 Cycles	SPST-NC	55 °C	-25 °C	50000000 Cycles	Silver	Wire Leads	Green/Red LED	On-Mom	22.2 mm	No Marking
BULGIN LIMITED MC19MCSRG	IP68 IP69K	Panel Mount Front	Capacitive Illuminated	500 mA	Button Flush Round	12 V	50000000 Cycles	SPST-NC	55 °C	-25 °C	50000000 Cycles	Silver	Wire Leads	Green/Red LED	On-Mom	19.2 mm	No Marking
BULGIN LIMITED MC19MCSGR	IP68 IP69K	Panel Mount Front	Capacitive Illuminated	500 mA	Button Flush Round	12 V	50000000 Cycles	SPST-NC	55 °C	-25 °C	50000000 Cycles	Silver	Wire Leads	Green/Red LED	On-Mom	19.2 mm	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Capacitive, Illuminated Panel Mount, Front
