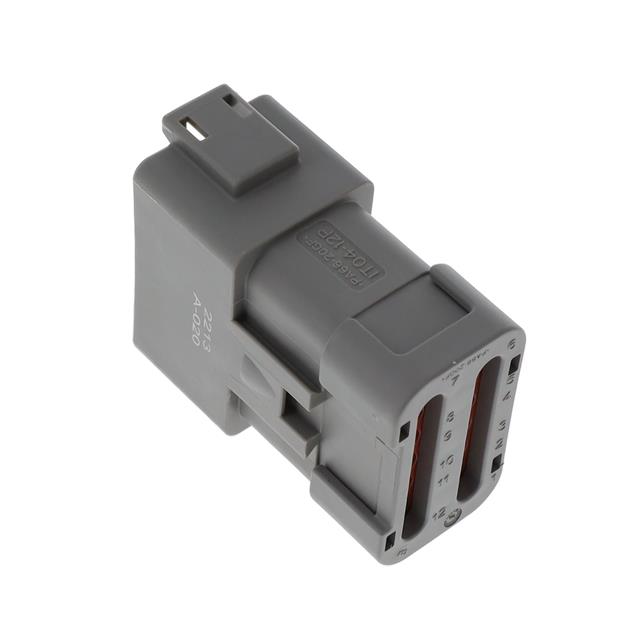

IT04-12PA-020

Active

ITT Cannon, LLC

CONN RCPT HSG 12POS

IT04-12PA-020

Active

ITT Cannon, LLC

CONN RCPT HSG 12POS

Description Specifications Series Pricing CAD Documents

Description

General part information

IT04-12 Series

12 Rectangular Connectors - Housings Receptacle Gray

Technical Specifications

Parameters and characteristics for this part

Specification	IT04-12PA-020

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	IP68, IP69K, IP67, Sealed, Cap (Cover)
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

IT04-12 Series

Part	Features	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Contact Termination	Insulation Material	Number of Positions	Connector Type	Number of Rows	Color	Mounting Type
ITT Cannon, LLC IT04-12PA-024-N	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Black	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-022-N	IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Gray	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-024	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Black	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-026-N	IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Black	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-022	IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Gray	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-020	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Gray	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-026	IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Black	Free Hanging (In-Line)
ITT Cannon, LLC IT04-12PA-020-N	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Holder	125 °C	-55 °C	Male Pin	Crimp	Glass Filled Nylon Polyamide (PA)	12	Receptacle	2	Gray	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

IT04-12PA-020 | Datasheet
