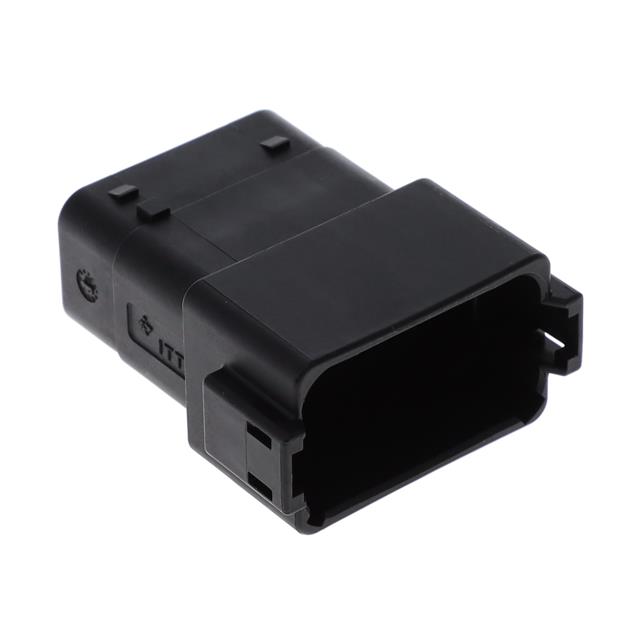

IT04-12PA-026-N

Active

ITT Cannon, LLC

CONN RCPT HSG 12POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSG 12POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT04-12PA-026-N

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Mounting Type	Contact Termination	Features	Contact Type	Number of Rows	Fastening Type	Color
ITT Cannon, LLC IT04-12PA-024-N	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed	Male Pin	2	Latch Holder	Black
ITT Cannon, LLC IT04-12PA-022-N	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp		Male Pin	2	Latch Holder	Gray
ITT Cannon, LLC IT04-12PA-024	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed	Male Pin	2	Latch Holder	Black
ITT Cannon, LLC IT04-12PA-026-N	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp		Male Pin	2	Latch Holder	Black
ITT Cannon, LLC IT04-12PA-022	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp		Male Pin	2	Latch Holder	Gray
ITT Cannon, LLC IT04-12PA-020	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed	Male Pin	2	Latch Holder	Gray
ITT Cannon, LLC IT04-12PA-026	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp		Male Pin	2	Latch Holder	Black
ITT Cannon, LLC IT04-12PA-020-N	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	Receptacle	12	Free Hanging (In-Line)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed	Male Pin	2	Latch Holder	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black
