BQ40Z50EVM-561
ActiveEVAL BOARD FOR BQ40Z50
Deep-Dive with AI
Search across all available documentation for this part.

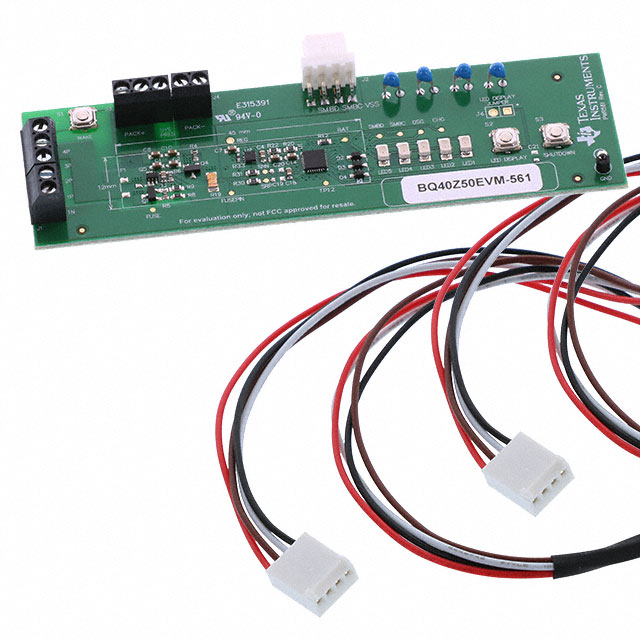

BQ40Z50EVM-561
ActiveEVAL BOARD FOR BQ40Z50
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ40Z50EVM-561 | BQ40Z50 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Contents | Board(s) | Board(s) |
| Fault Protection | - | Over Temperature, Over/Under Voltage, Over Current, Short Circuit |
| Function | Fuel Gauge | Multi-Function Controller, Fuel Gauge |
| Interface | - | SMBus |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 32-VFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 32-VQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ40Z50 | BQ40Z50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.00 | |
BQ40Z50 Series
1-4 series Li-ion battery pack manager supporting Turbo Mode 2.0
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Supplier Device Package | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Fault Protection | Interface | Function | Package / Case | Mounting Type | Contents | Supplied Contents | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ40Z50RSMT-R2 | 85 °C | -40 °C | Lithium Ion/Polymer | 32-VQFN (4x4) | 4 | 1 | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | SMBus | Multi-Function Controller | 32-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ40Z50RSMT-R1 | 85 °C | -40 °C | Lithium Ion/Polymer | 32-VQFN (4x4) | 4 | 1 | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | SMBus | Multi-Function Controller | 32-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ40Z50RSMR-R2 | 85 °C | -40 °C | Lithium Ion/Polymer | 32-VQFN (4x4) | 4 | 1 | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | SMBus | Multi-Function Controller | 32-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ40Z50EVM-561 | Fuel Gauge | Board(s) | Board(s) | Power Management | BQ40Z50 | ||||||||||
Texas Instruments BQ40Z50RSMR-R1 | 85 °C | -40 °C | Lithium Ion/Polymer | 32-VQFN (4x4) | 4 | 1 | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | SMBus | Multi-Function Controller | 32-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ40Z50RSMT | 85 °C | -40 °C | Lithium Ion/Polymer | 32-VQFN (4x4) | 4 | 1 | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | SMBus | Multi-Function Controller | 32-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ40Z50RSMR | 85 °C | -40 °C | Lithium Ion/Polymer | 32-VQFN (4x4) | 4 | 1 | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | SMBus | Multi-Function Controller | 32-VFQFN Exposed Pad | Surface Mount |
Description
General part information
BQ40Z50 Series
The BQ40Z50-R2 device, incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection, and authentication for 1-series, 2-series, 3-series, and 4-series cell Li-ion and Li-polymer battery packs.
Using its integrated high-performance analog peripherals, the BQ40Z50-R2 device measures and maintains an accurate record of available capacity, voltage, current, temperature, and other critical parameters in Li-ion or Li-polymer batteries, and reports this information to the system host controller over an SMBus v1.1 compatible interface.
The BQ40Z50-R2 device, incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection, and authentication for 1-series, 2-series, 3-series, and 4-series cell Li-ion and Li-polymer battery packs.
