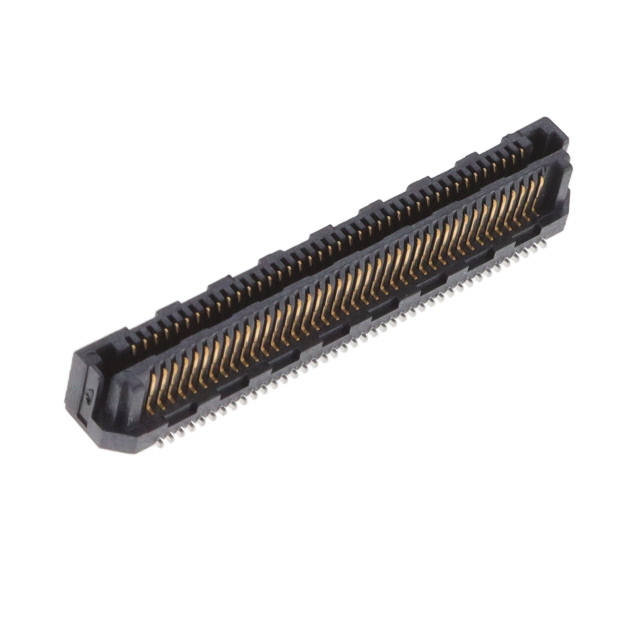

LSS-140-01-L-DV-A-TR

Active

Samtec Inc.

0.64MM 2 VERTICAL WELDING SMD,P=0.64MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LSS Datasheet +1

LSS-140-01-L-DV-A-TR

Active

Samtec Inc.

0.64MM 2 VERTICAL WELDING SMD,P=0.64MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

DocumentsDatasheet LSS Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-140-01-L-DV-A-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-140 Series

Part	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Features	Mounting Type	Height Above Board	Height Above Board
Samtec Inc. LSS-140-02-F-DV-A-K	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	3 Áin	0.076 Ám	80	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide Pick and Place	Surface Mount
Samtec Inc. LSS-140-02-F-DV-A	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	3 Áin	0.076 Ám	80	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide	Surface Mount
Samtec Inc. LSS-140-03-L-DV-A-K-TR	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	10 Áin	0.25 Ám	80			7 mm 8 mm 10 mm	Board Guide Pick and Place	Surface Mount	5.3 mm	0.209 in
Samtec Inc. LSS-140-01-F-DV-A-K	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	3 Áin	0.076 Ám	80			6 mm 7 mm 9 mm	Board Guide Pick and Place	Surface Mount	4.3 mm	0.169 in
Samtec Inc. LSS-140-03-L-DV-A-K	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	10 Áin	0.25 Ám	80			7 mm 8 mm 10 mm	Board Guide Pick and Place	Surface Mount	5.3 mm	0.209 in
Samtec Inc. LSS-140-02-L-DV-A-K	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	10 Áin	0.25 Ám	80	0.287 in	7.3 mm	9 mm 10 mm 12 mm	Board Guide Pick and Place	Surface Mount
Samtec Inc. LSS-140-01-L-DV-A-TR	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	10 Áin	0.25 Ám	80			6 mm 7 mm 9 mm	Board Guide	Surface Mount	4.3 mm	0.169 in
Samtec Inc. LSS-140-03-L-DV-A-TR	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	10 Áin	0.25 Ám	80			7 mm 8 mm 10 mm	Board Guide	Surface Mount	5.3 mm	0.209 in
Samtec Inc. LSS-140-02-F-DV-LC	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	3 Áin	0.076 Ám	80	0.287 in	7.3 mm	9 mm 10 mm 12 mm		Surface Mount
Samtec Inc. LSS-140-01-L-DV-A-K-TR	2	Gold	0.64 mm	0.025 in	Self Mating Non-Gendered Hermaphroditic	10 Áin	0.25 Ám	80			6 mm 7 mm 9 mm	Board Guide Pick and Place	Surface Mount	4.3 mm	0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.52
		25	$ 4.99
		50	$ 4.63
		100	$ 4.41
	Digi-Reel®	1	$ 5.52
		25	$ 4.99
		50	$ 4.63
		100	$ 4.41
	Tape & Reel (TR)	575	$ 3.61
		1150	$ 3.39
LCSC	Piece	1	$ 4.30
		200	$ 1.67
		575	$ 1.61
		1150	$ 1.58

Description

General part information

LSS-140 Series

80 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
