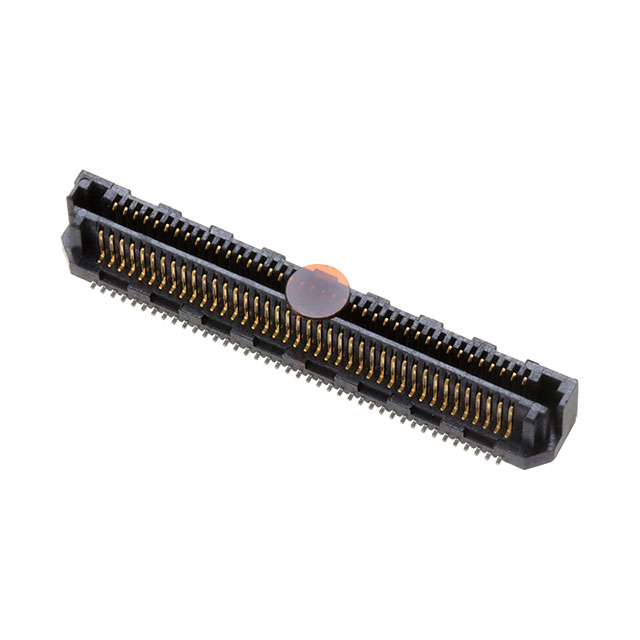

LSS-140-01-L-DV-A-K-TR - LSS-140-01-L-DV-A-K-TR

LSS-140-01-L-DV-A-K-TR

Active
Samtec Inc.

CONN SOCKET AND TERMINAL STRIP SKT/HDR 80 POS 0.635MM SOLDER ST SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip+1
LSS-140-01-L-DV-A-K-TR - LSS-140-01-L-DV-A-K-TR

LSS-140-01-L-DV-A-K-TR

Active
Samtec Inc.

CONN SOCKET AND TERMINAL STRIP SKT/HDR 80 POS 0.635MM SOLDER ST SMD T/R

Deep-Dive with AI

DocumentsDatasheet0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip+1

Technical Specifications

Parameters and characteristics for this part

SpecificationLSS-140-01-L-DV-A-K-TR
Connector TypeSelf Mating, Non-Gendered, Hermaphroditic
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place, Board Guide
Height Above Board0.169 in
Height Above Board4.3 mm
Mated Stacking Heights7 mm, 6 mm, 9 mm
Mounting TypeSurface Mount
Number of Positions80
Number of Rows2
Pitch [x]0.64 mm
Pitch [x]0.025 in

LSS-140 Series

PartNumber of RowsContact FinishPitch [x]Pitch [x]Connector TypeContact Finish ThicknessContact Finish ThicknessNumber of PositionsHeight Above Board [z]Height Above Board [z]Mated Stacking HeightsFeaturesMounting TypeHeight Above BoardHeight Above Board
Samtec Inc.
LSS-140-02-F-DV-A-K
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
3 Áin
0.076 Ám
80
0.287 in
7.3 mm
9 mm
10 mm
12 mm
Board Guide
Pick and Place
Surface Mount
Samtec Inc.
LSS-140-02-F-DV-A
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
3 Áin
0.076 Ám
80
0.287 in
7.3 mm
9 mm
10 mm
12 mm
Board Guide
Surface Mount
Samtec Inc.
LSS-140-03-L-DV-A-K-TR
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
10 Áin
0.25 Ám
80
7 mm
8 mm
10 mm
Board Guide
Pick and Place
Surface Mount
5.3 mm
0.209 in
Samtec Inc.
LSS-140-01-F-DV-A-K
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
3 Áin
0.076 Ám
80
6 mm
7 mm
9 mm
Board Guide
Pick and Place
Surface Mount
4.3 mm
0.169 in
Samtec Inc.
LSS-140-03-L-DV-A-K
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
10 Áin
0.25 Ám
80
7 mm
8 mm
10 mm
Board Guide
Pick and Place
Surface Mount
5.3 mm
0.209 in
Samtec Inc.
LSS-140-02-L-DV-A-K
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
10 Áin
0.25 Ám
80
0.287 in
7.3 mm
9 mm
10 mm
12 mm
Board Guide
Pick and Place
Surface Mount
Samtec Inc.
LSS-140-01-L-DV-A-TR
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
10 Áin
0.25 Ám
80
6 mm
7 mm
9 mm
Board Guide
Surface Mount
4.3 mm
0.169 in
Samtec Inc.
LSS-140-03-L-DV-A-TR
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
10 Áin
0.25 Ám
80
7 mm
8 mm
10 mm
Board Guide
Surface Mount
5.3 mm
0.209 in
Samtec Inc.
LSS-140-02-F-DV-LC
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
3 Áin
0.076 Ám
80
0.287 in
7.3 mm
9 mm
10 mm
12 mm
Surface Mount
Samtec Inc.
LSS-140-01-L-DV-A-K-TR
2
Gold
0.64 mm
0.025 in
Self Mating
Non-Gendered
Hermaphroditic
10 Áin
0.25 Ám
80
6 mm
7 mm
9 mm
Board Guide
Pick and Place
Surface Mount
4.3 mm
0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 4.78
25$ 4.48
50$ 4.25
100$ 3.87
DigikeyCut Tape (CT) 1$ 5.69
25$ 5.14
50$ 4.78
100$ 4.55
Digi-Reel® 1$ 5.69
25$ 5.14
50$ 4.78
100$ 4.55
Tape & Reel (TR) 575$ 3.74
1150$ 3.47
2875$ 3.44

Description

General part information

LSS-140 Series

80 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
