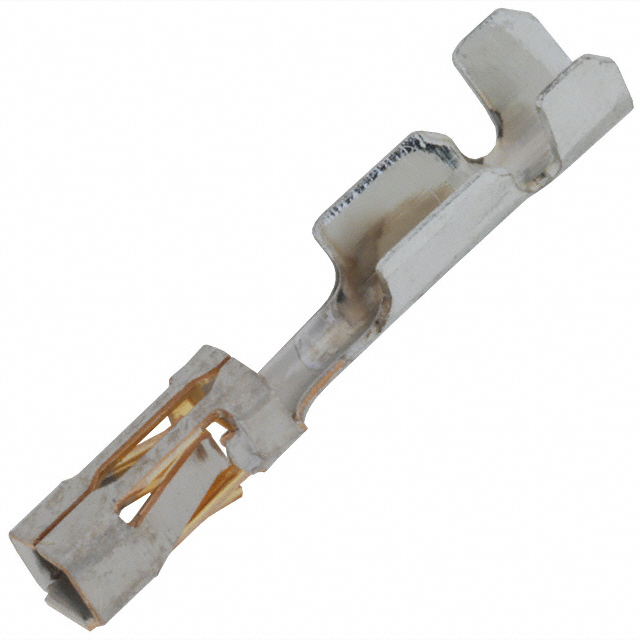

103171-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103171-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103171-5 | 103171 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 0.76 µm |
| Contact Finish Thickness | 30 Áin | 15 - 30 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.35 | |||
| 3000 | $ 0.33 | |||
103171 Series
CONN SOCKET 22-26AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Pin or Socket |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103171-1 | 15 µin | 0.38 µm | Crimp | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 5-103171-5 | 30 Áin | 0.76 Ám | Crimp | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 5-103171-4 | 30 Áin | 0.76 Ám | Crimp | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 103171-5 | 30 Áin | 0.76 Ám | Crimp | 22 AWG | 26 AWG | Gold | Socket |
Description
General part information
103171 Series
Socket Contact Gold 22-26 AWG Crimp
