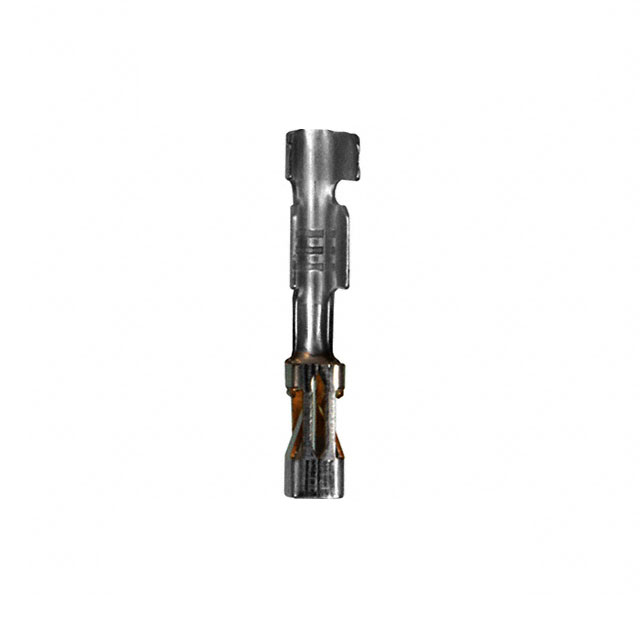

5-103171-4
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103171-4
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103171-4 | 103171 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 0.76 µm |
| Contact Finish Thickness | 30 Áin | 15 - 30 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.28 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.15 | |||
| Tape & Reel (TR) | 12500 | $ 0.14 | ||
| 25000 | $ 0.13 | |||
| 37500 | $ 0.13 | |||
| 62500 | $ 0.12 | |||
103171 Series
CONN SOCKET 22-26AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Pin or Socket |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103171-1 | 15 µin | 0.38 µm | Crimp | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 5-103171-5 | 30 Áin | 0.76 Ám | Crimp | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 5-103171-4 | 30 Áin | 0.76 Ám | Crimp | 22 AWG | 26 AWG | Gold | Socket |
TE Connectivity AMP Connectors 103171-5 | 30 Áin | 0.76 Ám | Crimp | 22 AWG | 26 AWG | Gold | Socket |
Description
General part information
103171 Series
Socket Contact Gold 22-26 AWG Crimp
