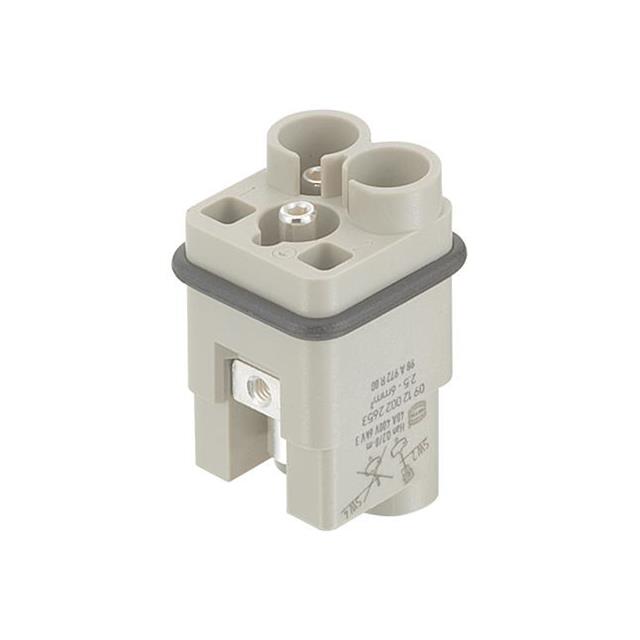

HEAVY DUTY INSERT, PLUG, 2+PE, 10MM2
Search across all available documentation for this part.
HEAVY DUTY INSERT, PLUG, 2+PE, 10MM2
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
Male Insert Gray 2+Ground Position Screw
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 09120022651 | 09120022 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Type | - | Module |
| Contact Finish | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | - | Han® D |
| Current Rating (Amps) | 40 A | 10 - 40 A |
| Gender | Male | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | Ground | Ground |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 3 A | 3 A |
| Termination Style | Screw | Screw, Crimp |
| Voltage Rating | 400 V | 50 - 830 V |
HEAVY DUTY CONNECTOR, 2/0+PE, HAN Q SERIES, INSERT, 3 CONTACTS, 3A, RECEPTACLE, SCREW SOCKET
| Part | Gender | Housing Material | Voltage Rating | Contact Finish | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Termination Style | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Size | Number of Positions | Contact Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING 09120022755 | Female | Polycarbonate (PC) | 400 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | |||
HARTING 09120022652 | Male | Polycarbonate (PC) | 600 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | Ground | ||
HARTING 09120022654 | Male | Polycarbonate (PC) | 600 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | |||
HARTING 09120022656 | Male | Polycarbonate (PC) | 830 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | |||
HARTING 09120022753 | Female | Polycarbonate (PC) | 400 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | |||
HARTING 09120022653 | Male | Polycarbonate (PC) | 400 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | |||
HARTING 09120022756 | Female | Polycarbonate (PC) | 830 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | |||
HARTING 09120022701 | Female | Polycarbonate (PC) | 50 V | 10 A | 2 | Crimp | Gray | 125 °C | -40 °C | 3 A | Han® D | Module | ||||
HARTING 09120022611 | Male | Polycarbonate (PC) | 50 V | 10 A | 2 | Crimp | Gray | 125 °C | -40 °C | 3 A | Han® D | Module | ||||
HARTING 09120022751 | Female | Polycarbonate (PC) | 400 V | Silver | UL94 V-0 | 40 A | 2 | Screw | Gray | Copper Alloy | 125 °C | -40 °C | 3 A | Ground |
