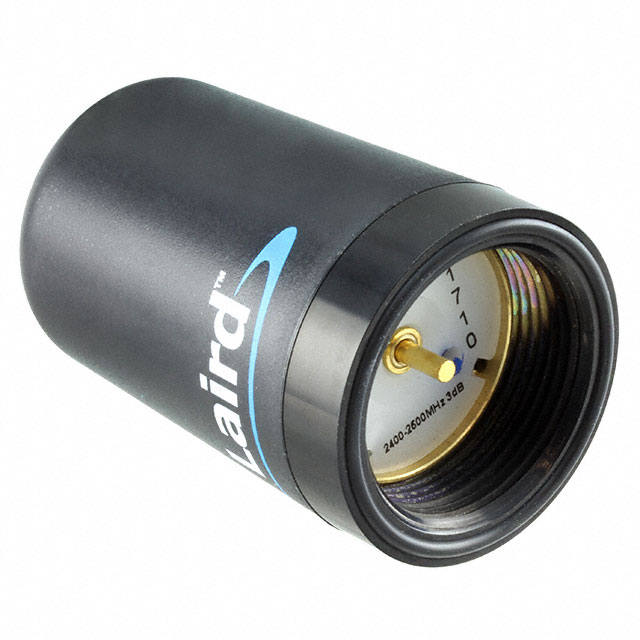

TRAB24003N
ObsoleteTE Connectivity Raychem Cable Protection
ANTENNA PHANTOM 3DBI GAIN 2500MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsVehicular Antenna Catalog
TRAB24003N
ObsoleteTE Connectivity Raychem Cable Protection
ANTENNA PHANTOM 3DBI GAIN 2500MHZ
Deep-Dive with AI
DocumentsVehicular Antenna Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | TRAB24003N |
|---|---|
| Antenna Type | Dome |
| Applications | Wi-Fi, GSM |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 3 dBi |
| Height (Max) | 58.42 mm |
| Height (Max) [Max] | 2.3 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | Cellular, WiFi |
| Termination | NMO |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TRAB24003 Series
RF ANTENNA GSM, Wi-Fi Dome NMO Base Mount
