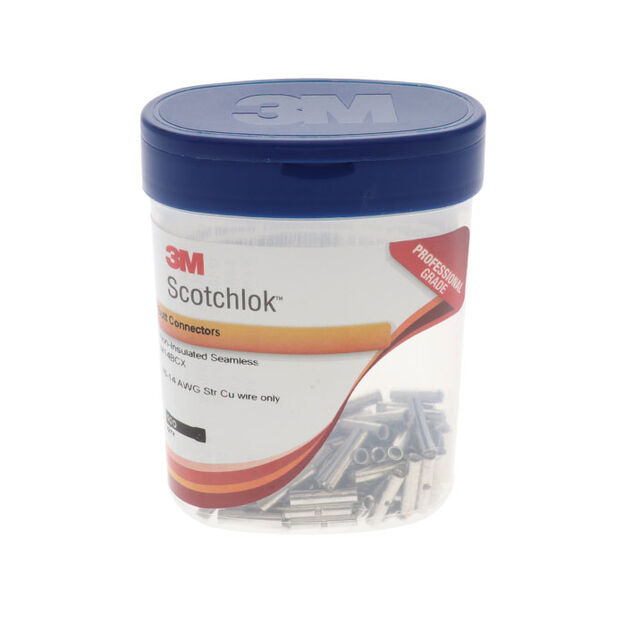

M14BCX-BOTTLE

Active

CONN SPLICE 14-16AWG CRIMP 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M14BCX-BOTTLE

Active

CONN SPLICE 14-16AWG CRIMP 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.31
		10	$ 49.84
		25	$ 47.92
		50	$ 46.32
		100	$ 43.77

Description

General part information

M14 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M14BCX-BOTTLE	M14 Series

Contact Finish	-	Tin
Contact Material	-	ETP, Copper
Features	-	Brazed Seam
Insulation	Non-Insulated	Non-Insulated
Length - Overall	-	0.6 - 0.74 "
Length - Overall	-	15.24 - 18.8 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	2	2
Stud/Tab Size	-	6 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Butt Splice, Inline, Individual Openings	Standard, Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	0.25 - 0.33 "
Width - Outer Edges	-	6.35 - 8.38 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in

M14 Series

CONN SPADE TERM 14-16AWG #6

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Terminal Type	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Insulation	Termination	Features	Contact Material	Contact Finish	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Thickness	Thickness	Width - Outer Edges	Number of Wire Entries	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges	Length - Termination	Length - Termination [x]
3M M14-6FBK	0.25 in	6.35 mm	Standard	6 Stud	0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)
3M M14-6FLK	0.25 in	6.35 mm	Snap, Spring	6 Stud	0.68 in	17.27 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)	0.25 "	6.35 mm
3M M14-8FBK	0.25 in	6.35 mm	Standard		0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)			8 Stud
3M M14-6FBX-BOTTLE	0.25 in	6.35 mm	Standard	6 Stud	0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)
3M M14-8FBX-BOTTLE	0.25 in	6.35 mm	Standard		0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)			8 Stud
3M M14-6R/SX			Circular	6 Stud	0.6 in	15.24 mm	Non-Insulated	Crimp	Brazed Seam			Free Hanging (In-Line)	0.25 "	6.35 mm		0.03 in	0.76 mm
3M M14-8R/LX-BOTTLE			Circular		0.74 in	18.8 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)	0.31 in		8 Stud	0.03 in	0.76 mm	7.87 mm
3M M14BCX-BOTTLE			Butt Splice, Individual Openings, Inline				Non-Insulated	Crimp											2
3M M14-8FX-BOTTLE			Standard		0.7 in	17.78 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)			8 Stud			8.64 mm		0.29 in	7.37 mm	0.34 in	6.35 mm	0.25 "
3M M14-6R/SK			Circular	6 Stud	0.6 in	15.24 mm	Non-Insulated	Crimp	Brazed Seam			Free Hanging (In-Line)	0.25 "	6.35 mm		0.03 in	0.76 mm
