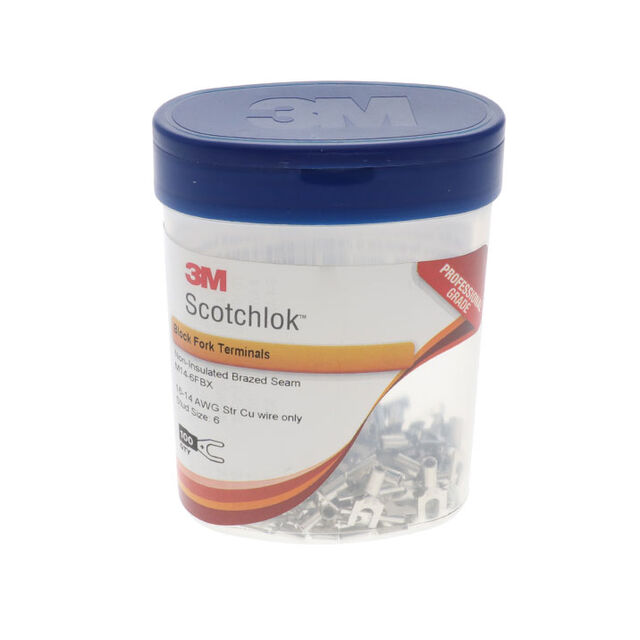

M14-6FBX-BOTTLE

Active

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M14-6FBX-BOTTLE

Active

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M14-6FBX-BOTTLE	M14 Series

Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Non-Insulated	Non-Insulated
Length - Overall [x]	0.65 "	0.6 - 0.74 "
Length - Overall [x]	16.5 mm	15.24 - 18.8 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Ring Center to Termination [x]	0.25 in	0.25 in
Length - Ring Center to Termination [x]	6.35 mm	6.35 mm
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	6 Stud	6 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Standard	Standard, Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	0.25 - 0.33 "
Width - Outer Edges	-	6.35 - 8.38 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in

M14 Series

CONN SPADE TERM 14-16AWG #6

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Terminal Type	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Insulation	Termination	Features	Contact Material	Contact Finish	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Thickness	Thickness	Width - Outer Edges	Number of Wire Entries	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges	Length - Termination	Length - Termination [x]
3M M14-6FBK	0.25 in	6.35 mm	Standard	6 Stud	0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)
3M M14-6FLK	0.25 in	6.35 mm	Snap, Spring	6 Stud	0.68 in	17.27 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)	0.25 "	6.35 mm
3M M14-8FBK	0.25 in	6.35 mm	Standard		0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)			8 Stud
3M M14-6FBX-BOTTLE	0.25 in	6.35 mm	Standard	6 Stud	0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)
3M M14-8FBX-BOTTLE	0.25 in	6.35 mm	Standard		0.65 "	16.5 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)			8 Stud
3M M14-6R/SX			Circular	6 Stud	0.6 in	15.24 mm	Non-Insulated	Crimp	Brazed Seam			Free Hanging (In-Line)	0.25 "	6.35 mm		0.03 in	0.76 mm
3M M14-8R/LX-BOTTLE			Circular		0.74 in	18.8 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)	0.31 in		8 Stud	0.03 in	0.76 mm	7.87 mm
3M M14BCX-BOTTLE			Butt Splice, Individual Openings, Inline				Non-Insulated	Crimp											2
3M M14-8FX-BOTTLE			Standard		0.7 in	17.78 mm	Non-Insulated	Crimp	Brazed Seam	Copper, ETP	Tin	Free Hanging (In-Line)			8 Stud			8.64 mm		0.29 in	7.37 mm	0.34 in	6.35 mm	0.25 "
3M M14-6R/SK			Circular	6 Stud	0.6 in	15.24 mm	Non-Insulated	Crimp	Brazed Seam			Free Hanging (In-Line)	0.25 "	6.35 mm		0.03 in	0.76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.31

Description

General part information

M14 Series

6 Stud Spade Terminal Connector Crimp 14-16 AWG
