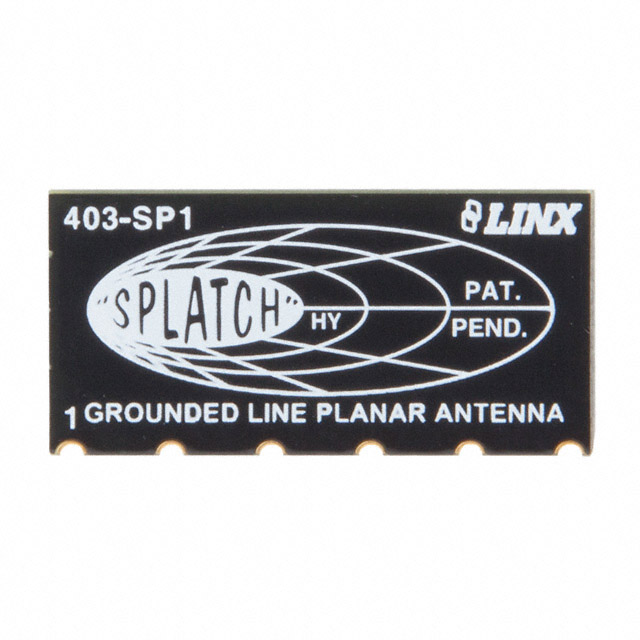

ANT-403-SP

Obsolete

TE Connectivity Linx

RF ANT 403MHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

RF ANT 403MHZ CHIP SOLDER SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.93

General part information

RF ANTENNA MICS Chip Solder Surface Mount

Technical documentation and resources

Part	Applications	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Termination	VSWR	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Antenna Type	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Gain
TE Connectivity Linx ANT-403-SP	MICS	403 MHz	405 MHz	400 MHz	Solder	1.9	1	1 GHz	300 MHz	Chip	Surface Mount	1.5 mm	0.059 in
TE Connectivity Linx ANT-403-USP-T	MICS	403 MHz	406 MHz	400 MHz	Solder	2	1	1 GHz	300 MHz	Chip	Surface Mount	2.62 mm	0.103 in	-8.7 dBi
TE Connectivity Linx ANT-403-USP	MICS	403 MHz	406 MHz	400 MHz	Solder	1.9	1	1 GHz	300 MHz	Chip	Surface Mount	2.62 mm	0.103 in	-8.7 dBi
