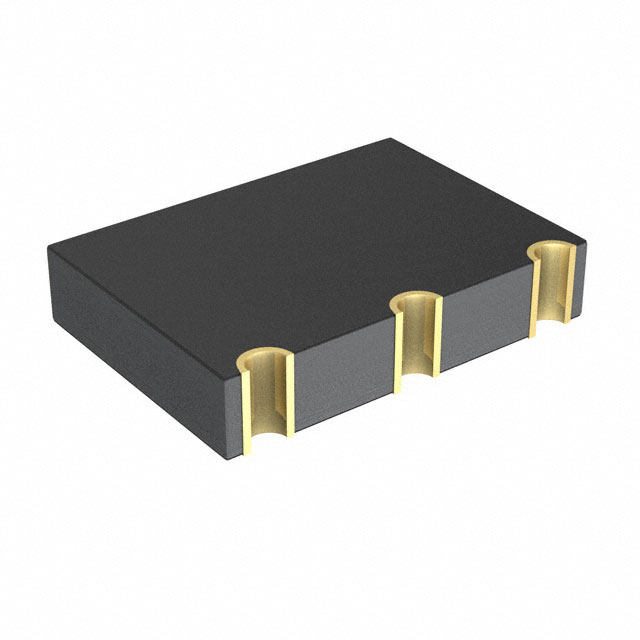

ANT-403-USP

Active

TE Connectivity Linx

RF ANT 403MHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 403MHZ CHIP SOLDER SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 403MHZ CHIP SOLDER SMD

Part	Applications	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Termination	VSWR	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Antenna Type	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Gain
TE Connectivity Linx ANT-403-SP	MICS	403 MHz	405 MHz	400 MHz	Solder	1.9	1	1 GHz	300 MHz	Chip	Surface Mount	1.5 mm	0.059 in
TE Connectivity Linx ANT-403-USP-T	MICS	403 MHz	406 MHz	400 MHz	Solder	2	1	1 GHz	300 MHz	Chip	Surface Mount	2.62 mm	0.103 in	-8.7 dBi
TE Connectivity Linx ANT-403-USP	MICS	403 MHz	406 MHz	400 MHz	Solder	1.9	1	1 GHz	300 MHz	Chip	Surface Mount	2.62 mm	0.103 in	-8.7 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA MICS Chip Solder Surface Mount

Technical documentation and resources

No documents available
