8428-18

Active

3M (TC)

COLD SHRINK CONNECTOR INSULATORS

Search across all available documentation for this part.

Active

3M (TC)

COLD SHRINK CONNECTOR INSULATORS

Technical Specifications

Parameters and characteristics for this part

Specification	8428-18

Color	Black
Diameter [Max] [diameter]	49.3 mm
Diameter [Max] [diameter]	1.94 "
Diameter [Min] [diameter]	24.1 mm
Diameter [Min] [diameter]	0.95 "
Length [x]	457.2 mm
Length [x]	1.5 ft
Material	Ethylene Propylene Rubber (EPR)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Type	Tubing

Part	Color	Material	Diameter [Min] [diameter]	Diameter [Max] [diameter]	Diameter [Min] [diameter]	Diameter [Max] [diameter]	Shelf Life Start	Type	Length [x]	Length [x]	Length [x]	Shelf Life
3M (TC) 8428-12P	Black	Ethylene Propylene Rubber (EPR)	24.1 mm	49.3 mm	0.95 "	1.94 "	Date of Manufacture	Tubing	304.8 mm	1 ft	12 "	60 Months
3M (TC) 8428-12	Black	Ethylene Propylene Rubber (EPR)	24.1 mm	49.3 mm	0.95 "	1.94 "	Date of Manufacture	Tubing	304.8 mm	1 ft	12 "	60 Months
3M (TC) 8428-18	Black	Ethylene Propylene Rubber (EPR)	24.1 mm	49.3 mm	0.95 "	1.94 "	Date of Manufacture	Tubing	457.2 mm	1.5 ft		60 Months
3M (TC) 8428-12M	Black	Ethylene Propylene Rubber (EPR)	24.1 mm	49.3 mm	0.95 "	1.94 "	Date of Manufacture	Tubing	304.8 mm	1 ft	12 "	60 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

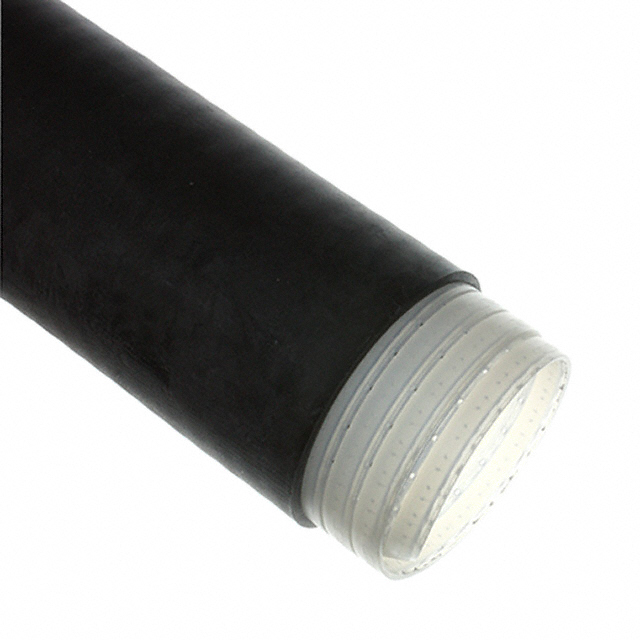

Black Cold Shrink Tubing 0.95" ~ 1.94" (24.1mm ~ 49.3mm) X 1.50' (457.20mm)
