L717SDC37PVFC309

Active

Amphenol ICC (Commercial Products)

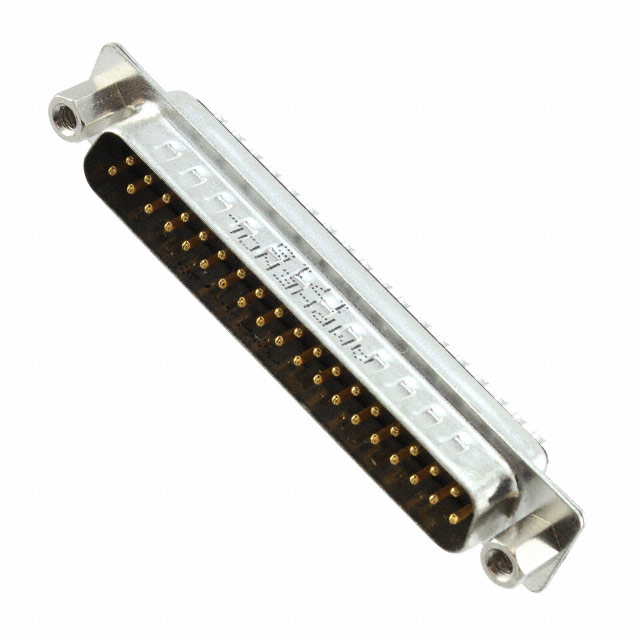

CONN D-SUB PLUG 37POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L717SDC37PVFC309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDC37PVFC309

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L717SDC37 Series

Part	Shell Size, Connector Layout	Contact Form	Contact Type	Contact Material	Voltage Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Material Flammability Rating	Dielectric Material	Number of Positions	Flange Feature	Contact Finish Thickness	Number of Rows	Connector Type	Color	Features	Mounting Type	Current Rating (Amps)	Connector Style	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDC37POL2R210	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Housing/Shell (Unthreaded)	Flash	2	Male Pins Plug	Black	Grounding Indents	Through Hole	3 A	D-Sub
Amphenol ICC (Commercial Products) L717SDC37PA4CH3FC309	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Female Screwlock (M3) Mating Side		2	Male Pins Plug	Black	Board Lock Grounding Indents	Through Hole Right Angle	3 A	D-Sub	8.08 mm	0.318 "	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDC37PVF	4 (DC C)	Stamped	Signal	Brass	250 VDC		-55 °C	105 ░C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Female Screwlock (4-40) Mating Side	Flash	2	Male Pins Plug	Black	Grounding Indents	Free Hanging (In-Line)	3 A	D-Sub					20 AWG
Amphenol ICC (Commercial Products) L717SDC37P1ACH4F	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Female Screwlock (4-40) Mating Side	Flash	2	Male Pins Plug	Black	Board Lock Grounding Indents	Through Hole Right Angle	3 A	D-Sub	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L717SDC37P1ACH3R	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Board Side (M3)	Flash	2	Male Pins Plug	Black	Board Lock Grounding Indents	Through Hole Right Angle	3 A	D-Sub	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L717SDC37PA4CH4FC309	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Female Screwlock (4-40) Mating Side		2	Male Pins Plug	Black	Board Lock Grounding Indents	Through Hole Right Angle	3 A	D-Sub	8.08 mm	0.318 "	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDC37PVFM	4 (DC C)	Stamped	Signal	Brass	250 VDC		-55 °C	105 ░C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Female Screwlock (M3) Mating Side	Flash	2	Male Pins Plug	Black	Grounding Indents	Free Hanging (In-Line)	3 A	D-Sub					20 AWG
Amphenol ICC (Commercial Products) L717SDC37POL2C727	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Housing/Shell (Unthreaded)	Flash	2	Male Pins Plug	Black	Grounding Indents	Through Hole	3 A	D-Sub
Amphenol ICC (Commercial Products) L717SDC37POL2	4 (DC C)	Stamped	Signal	Brass	250 VDC	Solder	-55 °C	125 °C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Housing/Shell (Unthreaded)	Flash	2	Male Pins Plug	Black	Grounding Indents	Through Hole	3 A	D-Sub
Amphenol ICC (Commercial Products) L717SDC37PVFC309	4 (DC C)	Stamped	Signal	Brass	250 VDC		-55 °C	105 ░C	Gold	UL94 V-0	Thermoplastic Glass Filled	37	Female Screwlock (4-40) Mating Side		2	Male Pins Plug	Black	Grounding Indents	Free Hanging (In-Line)	3 A	D-Sub			0.76 Ám	30 Áin	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.07
		10	$ 1.88
		25	$ 1.78
		40	$ 1.74
		80	$ 1.66
		240	$ 1.46

Description

General part information

L717SDC37 Series

37 Position D-Sub Plug, Male Pins Connector
