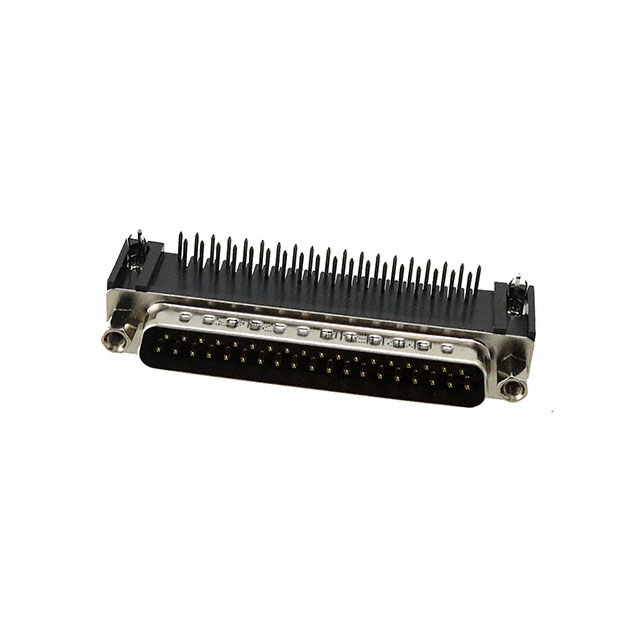

L717SDC37P1ACH4F
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 37POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L717SDC37P1ACH4F
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 37POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L717SDC37P1ACH4F |
|---|---|
| Backset Spacing | 0.406 in |
| Backset Spacing | 10.3 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.57 | |
| 10 | $ 3.24 | |||
| 25 | $ 3.07 | |||
| 40 | $ 3.00 | |||
| 80 | $ 2.86 | |||
| 240 | $ 2.50 | |||
| 440 | $ 2.43 | |||
| 960 | $ 2.07 | |||
| 2400 | $ 1.93 | |||
Description
General part information
L717SDC37 Series
37 Position D-Sub Plug, Male Pins Connector
