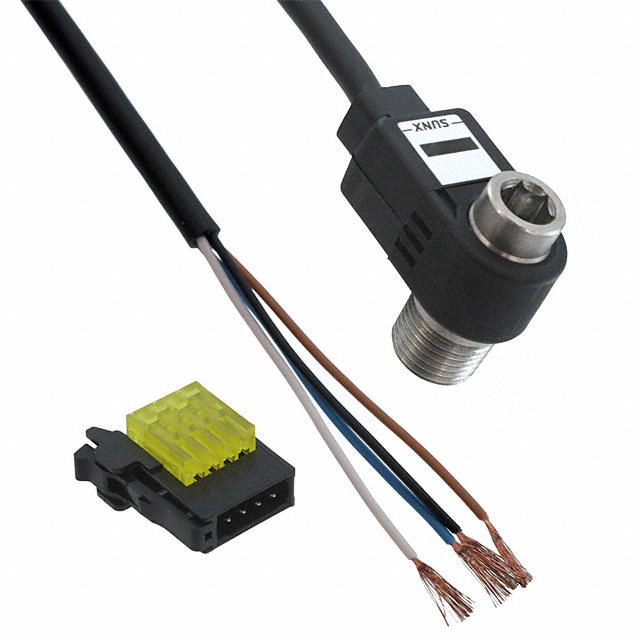

DPH-103-R-C5

Active

Panasonic Industrial Automation Sales

SENSOR PRESSURE -101KPA GAUGE

Deep-Dive with AI

Search across all available documentation for this part.

DPH-103-R-C5

Active

Panasonic Industrial Automation Sales

SENSOR PRESSURE -101KPA GAUGE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DPH-103-R-C5

Accuracy	0.5 %
Applications	Industrial Automation
Maximum Pressure	-72.52 PSI
Maximum Pressure	-500 kPa
Operating Pressure	-14.65 PSI
Operating Pressure	-101 kPa
Output [Max]	5 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	Module
Port Size [custom]	M5
Port Size [custom]	3.18 mm
Port Size [custom]	1/8"
Port Style	Threaded
Pressure Type	Vacuum
Termination Style	Connector
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

DPH-103 Series

Part	Maximum Pressure	Maximum Pressure	Output Type	Port Size	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Pressure Type	Applications	Operating Pressure	Operating Pressure	Accuracy	Termination Style	Package / Case	Port Size [custom]	Port Size [custom]	Port Size [custom]
Panasonic Industrial Automation Sales DPH-103-M5-R-C5	-72.52 PSI	-500 kPa	Analog Voltage	Male - M5	1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module
Panasonic Industrial Automation Sales DPH-103-R	-72.52 PSI	-500 kPa	Analog Voltage		1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module	M5	3.18 mm	1/8"
Panasonic Industrial Automation Sales DPH-103-M5-C5	-72.52 PSI	-500 kPa	Analog Voltage	Male - M5	1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module
Panasonic Industrial Automation Sales DPH-103-M3-R	-72.52 PSI	-500 kPa	Analog Voltage	Male - M3	1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module
Panasonic Industrial Automation Sales DPH-103-R-C5	-72.52 PSI	-500 kPa	Analog Voltage		1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module	M5	3.18 mm	1/8"
Panasonic Industrial Automation Sales DPH-103-M3-C5	-72.52 PSI	-500 kPa	Analog Voltage	Male - M3	1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module
Panasonic Industrial Automation Sales DPH-103-M3	-72.52 PSI	-500 kPa	Analog Voltage	Male - M3	1 V	5 V	12 V	24 V	Threaded	Vacuum	Industrial Automation	-14.65 PSI	-101 kPa	0.5 %	Connector	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.00
		10	$ 86.36

Description

General part information

DPH-103 Series

SENSOR PRESSURE -101KPA GAUGE

Documents

Technical documentation and resources

No documents available
