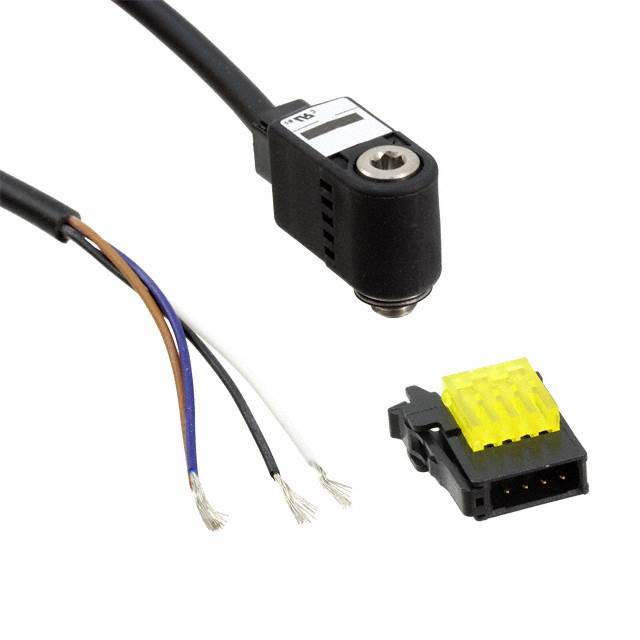

DPH-103-M5-R-C5
ActivePanasonic Industrial Automation Sales
SENSOR PRESSURE -101KPA GAUGE
Deep-Dive with AI
Search across all available documentation for this part.
DPH-103-M5-R-C5
ActivePanasonic Industrial Automation Sales
SENSOR PRESSURE -101KPA GAUGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DPH-103-M5-R-C5 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Industrial Automation |
| Maximum Pressure | -72.52 PSI |
| Maximum Pressure | -500 kPa |
| Operating Pressure | -14.65 PSI |
| Operating Pressure | -101 kPa |
| Output [Max] | 5 V |
| Output [Min] | 1 V |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Port Size | Male - M5 |
| Port Style | Threaded |
| Pressure Type | Vacuum |
| Termination Style | Connector |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
DPH-103 Series
| Part | Maximum Pressure | Maximum Pressure | Output Type | Port Size | Output [Min] | Output [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Port Style | Pressure Type | Applications | Operating Pressure | Operating Pressure | Accuracy | Termination Style | Package / Case | Port Size [custom] | Port Size [custom] | Port Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | Male - M5 | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module | |||
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module | M5 | 3.18 mm | 1/8" | |
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | Male - M5 | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module | |||
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | Male - M3 | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module | |||
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module | M5 | 3.18 mm | 1/8" | |
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | Male - M3 | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module | |||
Panasonic Industrial Automation Sales | -72.52 PSI | -500 kPa | Analog Voltage | Male - M3 | 1 V | 5 V | 12 V | 24 V | Threaded | Vacuum | Industrial Automation | -14.65 PSI | -101 kPa | 0.5 % | Connector | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 95.00 | |
| 10 | $ 86.36 | |||
Description
General part information
DPH-103 Series
SENSOR PRESSURE -101KPA GAUGE
Documents
Technical documentation and resources
No documents available
