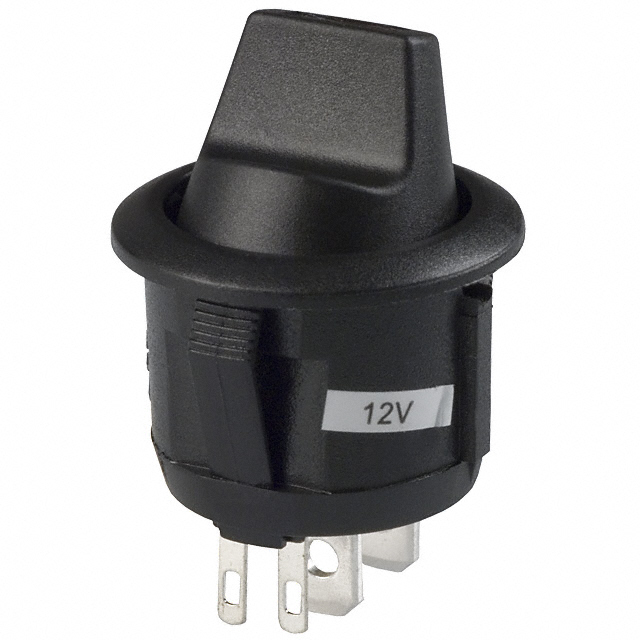

CLS-TC11A12190R

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 20A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-TC11A12190R

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 20A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLS-TC11A12190R	CLS-TC11 Series

Actuator Length	-	20 - 26.27 mm
Actuator Type	Flatted	Flatted, Standard Round
Bushing Thread	-	M12
Bushing Thread	-	0.75
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	LED, Yellow, Red, Green, Blue
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	20.2 mm	12 - 20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.250" (6.3mm), Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	12 V	12 V

CLS-TC11 Series

SWITCH TOGGLE SPST 20A 12V

Part	Voltage Rating - DC	Actuator Type	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Termination Style	Current Rating (Amps)	Illumination	Illumination Voltage (Nominal)	Illumination Type, Color	Actuator Length [x]	Bushing Thread	Bushing Thread	Mounting Type
Lumex Opto/Components Inc. CLS-TC11A12252Y	12 V	Flatted	On-Off	12 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	LED, Yellow	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12251R	12 V	Flatted	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)		Illuminated	12 VDC	LED, Red		M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12250G	12 V	Standard Round	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	Green, LED	20 mm	M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12190R	12 V	Flatted	On-Off	20.2 mm	SPST	Quick Connect - 0.187" (4.7mm)	20 A	Illuminated	12 VDC	LED, Red				Panel Mount, Snap-In
Lumex Opto/Components Inc. CLS-TC11A12251G	12 V	Flatted	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)		Illuminated	12 VDC	Green, LED		M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12252G	12 V	Flatted	On-Off	12 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	Green, LED	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12190Y	12 V	Flatted	On-Off	20.2 mm	SPST	Quick Connect - 0.187" (4.7mm)	20 A	Illuminated	12 VDC	LED, Yellow				Panel Mount, Snap-In
Lumex Opto/Components Inc. CLS-TC11A12250R	12 V	Standard Round	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	LED, Red	20 mm	M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12253R	12 V	Flatted	On-Off	12 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	LED, Red	23.2 mm
Lumex Opto/Components Inc. CLS-TC11A12251Y	12 V	Flatted	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)		Illuminated	12 VDC	LED, Yellow		M12	0.75
