CLS-TC11A12253R

Active

Lumex Opto/Components Inc.

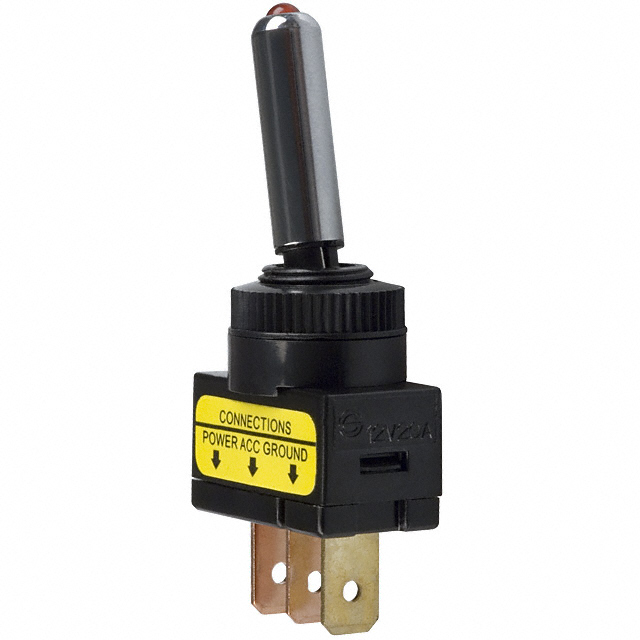

SWITCH TOGGLE SPST 20A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-TC11A12253R

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 20A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-TC11 Series

Toggle Switch SPST Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLS-TC11A12253R	CLS-TC11 Series

Actuator Length [x]	23.2 mm	20 - 26.27 mm
Actuator Type	Flatted	Flatted, Standard Round
Bushing Thread	-	M12
Bushing Thread	-	0.75
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	LED, Yellow, Red, Green, Blue
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mounting Type	-	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	12 mm	12 - 20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	12 V	12 V

CLS-TC11 Series

SWITCH TOGGLE SPST 20A 12V

Part	Voltage Rating - DC	Actuator Type	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Termination Style	Current Rating (Amps)	Illumination	Illumination Voltage (Nominal)	Illumination Type, Color	Actuator Length [x]	Bushing Thread	Bushing Thread	Mounting Type
Lumex Opto/Components Inc. CLS-TC11A12252Y	12 V	Flatted	On-Off	12 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	LED, Yellow	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12251R	12 V	Flatted	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)		Illuminated	12 VDC	LED, Red		M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12250G	12 V	Standard Round	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	Green, LED	20 mm	M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12190R	12 V	Flatted	On-Off	20.2 mm	SPST	Quick Connect - 0.187" (4.7mm)	20 A	Illuminated	12 VDC	LED, Red				Panel Mount, Snap-In
Lumex Opto/Components Inc. CLS-TC11A12251G	12 V	Flatted	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)		Illuminated	12 VDC	Green, LED		M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12252G	12 V	Flatted	On-Off	12 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	Green, LED	26.27 mm
Lumex Opto/Components Inc. CLS-TC11A12190Y	12 V	Flatted	On-Off	20.2 mm	SPST	Quick Connect - 0.187" (4.7mm)	20 A	Illuminated	12 VDC	LED, Yellow				Panel Mount, Snap-In
Lumex Opto/Components Inc. CLS-TC11A12250R	12 V	Standard Round	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	LED, Red	20 mm	M12	0.75
Lumex Opto/Components Inc. CLS-TC11A12253R	12 V	Flatted	On-Off	12 mm	SPST	Quick Connect - 0.250" (6.3mm)	20 A	Illuminated	12 VDC	LED, Red	23.2 mm
Lumex Opto/Components Inc. CLS-TC11A12251Y	12 V	Flatted	On-Off	12.2 mm	SPST	Quick Connect - 0.250" (6.3mm)		Illuminated	12 VDC	LED, Yellow		M12	0.75
