BSC0911NDATMA1
ActiveOPTIMOS™ N-CHANNEL POWER MOSFET 25 V ; ASYMMETRICAL DUAL 5X6 PACKAGE; 1.2 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
BSC0911NDATMA1
ActiveOPTIMOS™ N-CHANNEL POWER MOSFET 25 V ; ASYMMETRICAL DUAL 5X6 PACKAGE; 1.2 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSC0911NDATMA1 |
|---|---|
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Current - Continuous Drain (Id) @ 25°C [Max] | 30 A |
| Current - Continuous Drain (Id) @ 25°C [Min] | 18 A |
| Drain to Source Voltage (Vdss) | 25 V |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1600 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

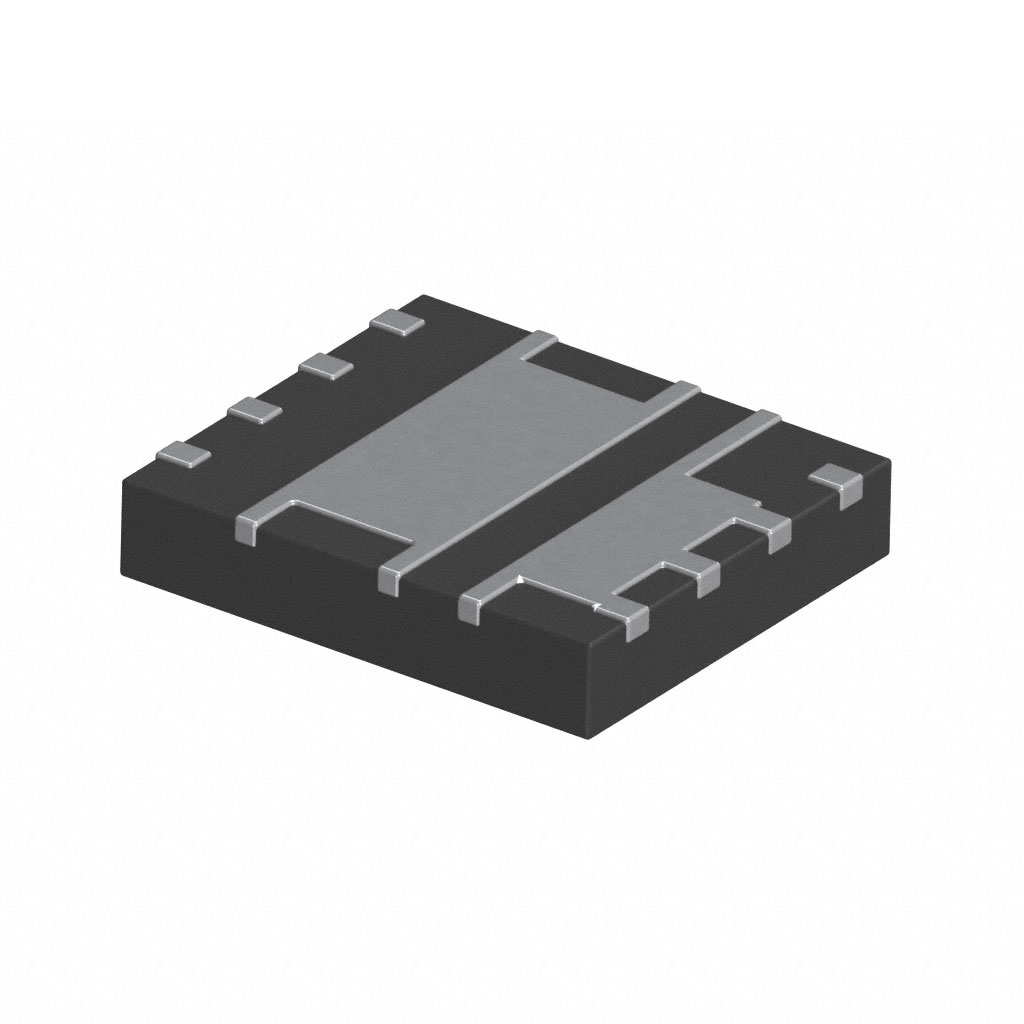

| Package / Case | 8-PowerTDFN |
| Power - Max [Max] | 1 W |
| Rds On (Max) @ Id, Vgs | 3.2 mOhm |
| Supplier Device Package | PG-TISON-8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.24 | |
| 10 | $ 1.44 | |||
| 100 | $ 0.98 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.72 | |||
| 2000 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 2.24 | ||
| 10 | $ 1.44 | |||
| 100 | $ 0.98 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.72 | |||
| 2000 | $ 0.67 | |||
| Tape & Reel (TR) | 5000 | $ 0.63 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.60 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.66 | |||
Description
General part information
BSC0911 Series
With the OptiMOS™ 25V product family, Infineon sets new standards in power density and energy efficiency for discrete power MOSFETs and system in package. Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. Available in halfbridge configuration (power stage 5x6).
Documents
Technical documentation and resources
