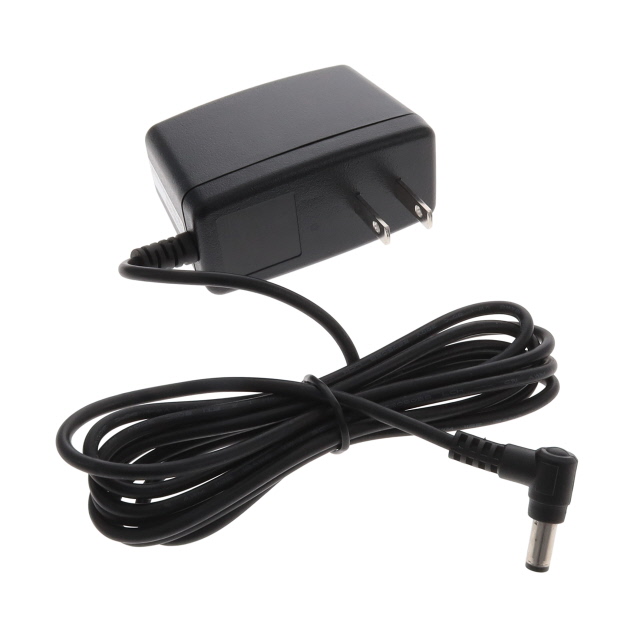

TRG1509-A-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 9V 13W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TRG15 Cable DC Plug Configuration

TRG1509-A-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 9V 13W

Deep-Dive with AI

DocumentsDatasheet TRG15 Cable DC Plug Configuration

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRG1509-A-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1.4 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Polarization	Positive Center
Power (Watts)	13 W
Region Utilized	North America
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.84 in
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.05 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

TRG1509 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Current - Output (Max) [Max]	Input Connector	Cord Length	Cord Length	No Load Power Consumption [Max]	Input Type	Standard Number	Form	Power (Watts)	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Applications	Polarization	Weight	Weight	Output Connector	Output Connector [diameter]	Output Connector [z]
Cincon Electronics Co. LTD TRG1509-S-01E03 VI	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	Australia	1.4 A	AS 3112	70.9 in	1.8 m	75 mW	Fixed Blade	60950-1	Wall Mount (Class II)	13 W	CE cULus FCC GS PSE TUV	90 VAC	264 VAC	9 V	-20 C	60 °C	CoC Tier 2 Level VI	ITE (Commercial)	Positive Center
Cincon Electronics Co. LTD TRG1509-A-01E03 VI	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	North America	1.4 A	NEMA 1-15P	70.9 in	1.8 m	75 mW	Fixed Blade	60950-1	Wall Mount (Class II)	13 W	CE cULus FCC GS PSE TUV	90 VAC	264 VAC	9 V	-20 C	60 °C	CoC Tier 2 Level VI	ITE (Commercial)	Positive Center
Cincon Electronics Co. LTD TRG1509-E-01E03 VI	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	Europe	1.4 A	KSC 8305	70.9 in	1.8 m	75 mW	Fixed Blade	60950-1	Wall Mount (Class II)	13 W	CE cULus FCC GS PSE TUV	90 VAC	264 VAC	9 V	-20 C	60 °C	CoC Tier 2 Level VI	ITE (Commercial)	Positive Center
Cincon Electronics Co. LTD TRG1509-A-11E03 VI	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	North America	1.4 A	NEMA 1-15P	70.9 in	1.8 m	75 mW	Fixed Blade		Wall Mount (Class II)	13 W	CE cULus FCC GS PSE TUV	90 VAC	264 VAC	9 V	-20 C	60 °C	CoC Tier 2 Level VI	ITE (Commercial)	Positive Center	0.309 lb	140 g	Barrel Plug	2.1 mm 5.5 mm	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.00
		5	$ 10.67
		10	$ 10.35
		25	$ 9.83
		50	$ 9.44
		100	$ 8.85

Description

General part information

TRG1509 Series

9V 13 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

TRG15 Cable DC Plug Configuration

Datasheet
