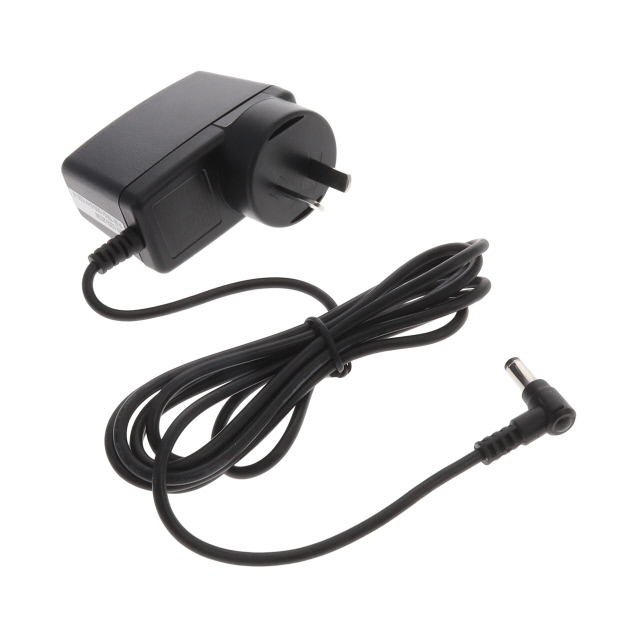

Specification	TRG1509-S-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, FCC, TUV, GS, CE
Cord Length	70.9 in
Current - Output (Max)	1.4 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Input Connector	AS 3112
Input Type	Fixed Blade
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Polarization	Positive Center
Power (Watts)	13 W
Region Utilized	Australia
Size / Dimension Height	2.05 in
Size / Dimension Length	2.84 in
Size / Dimension Width	1.38 in
Standard Number	60950-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	9 V

TRG1509 Series

Part	Standard Number	Applications	Input Connector	No Load Power Consumption (Max)	Region Utilized	Form	Approval Agency	Cord Length	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Current - Output (Max)	Efficiency	Input Type	Voltage - Output	Polarization	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Output Connector O.D.	Output Connector	Output Connector Length	Output Connector I.D.	Weight
Cincon Electronics Co. LTD TRG1509-S-01E03 VI	60950-1	ITE (Commercial)	AS 3112	75 mW	Australia	Wall Mount (Class II)	CE cULus FCC GS PSE TUV	70.9 in	2.05 in	1.38 in	2.84 in	1.4 A	CoC Tier 2 Level VI	Fixed Blade	9 V	Positive Center	90 V	264 V	60 °C	-20 °C	13 W
Cincon Electronics Co. LTD TRG1509-A-01E03 VI	60950-1	ITE (Commercial)	NEMA 1-15P	75 mW	North America	Wall Mount (Class II)	CE cULus FCC GS PSE TUV	70.9 in	2.05 in	1.38 in	2.84 in	1.4 A	CoC Tier 2 Level VI	Fixed Blade	9 V	Positive Center	90 V	264 V	60 °C	-20 °C	13 W
Cincon Electronics Co. LTD TRG1509-E-01E03 VI	60950-1	ITE (Commercial)	KSC 8305	75 mW	Europe	Wall Mount (Class II)	CE cULus FCC GS PSE TUV	70.9 in	2.05 in	1.38 in	2.84 in	1.4 A	CoC Tier 2 Level VI	Fixed Blade	9 V	Positive Center	90 V	264 V	60 °C	-20 °C	13 W
Cincon Electronics Co. LTD TRG1509-A-11E03 VI		ITE (Commercial)	NEMA 1-15P	75 mW	North America	Wall Mount (Class II)	CE cULus FCC GS PSE TUV	70.9 in	2.05 in	1.38 in	2.84 in	1.4 A	CoC Tier 2 Level VI	Fixed Blade	9 V	Positive Center	90 V	264 V	60 °C	-20 °C	13 W	5.5 mm	Barrel Plug	12 mm	2.1 mm	0.309 lb
