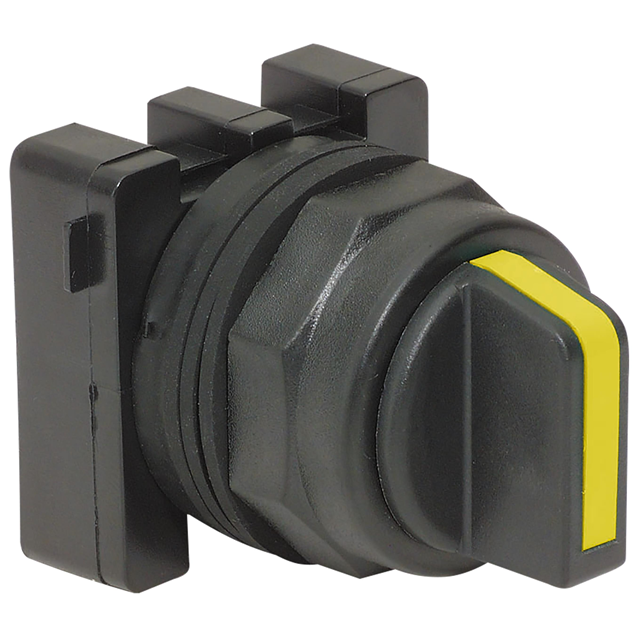

SSO3-SLYW-NO/NO

Active

c3controls

SWITCH SELECT 3POS DPST 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH SELECT 3POS DPST 10A 72V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSO3-SLYW-NO/NO	SSO3 Series

Actuator Type	-	Selector
Approval Agency	cULus, CSA, CE	cULus, CSA, CE
Circuit	DPST-NO	DPST-NO
Current Rating (Amps)	10 A, 5 A	5 - 10 A
Depth Behind Flange	42.9 mm	42.9 mm
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles	500000 Cycles
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	30.2 mm	30.2 mm
Requires	-	Contact Block(s)
Switch Function	On-Off-Off, Off-Off-On	On-Off-Off, Off-Off-On
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard, Maintained
Voltage Rating - AC	72 V	72 V
Voltage Rating - DC	28 V	28 V

SWITCH SELECT 3POS DPST 10A 72V

Part	Illumination	Switch Function	Approval Agency	Ingress Protection	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Depth Behind Flange	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Circuit	Voltage Rating - DC	Actuator Type	Requires
c3controls SSO3-SLYW-NO/NO	Non-Illuminated	Off-Off-On, On-Off-Off	CE, CSA, cULus	IP65 - Dust Tight, Water Resistant	Standard	-40 °C	55 °C	500000 Cycles	42.9 mm	30.2 mm	Screw Terminal	72 V	5 A, 10 A	DPST-NO	28 V
c3controls SSO3-SHWE-NO/NO	Non-Illuminated	Off-Off-On, On-Off-Off	CE, CSA, cULus	IP65 - Dust Tight, Water Resistant	Standard	-40 °C	55 °C	500000 Cycles	42.9 mm	30.2 mm	Screw Terminal	72 V	5 A, 10 A	DPST-NO	28 V
c3controls SSO3-SHWE	Non-Illuminated				Maintained					30.2 mm						Selector	Contact Block(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 34.83

General part information

Selector Switch 3 Position DPST-NO 10A (AC), 5A (DC) 72 V Panel Mount
